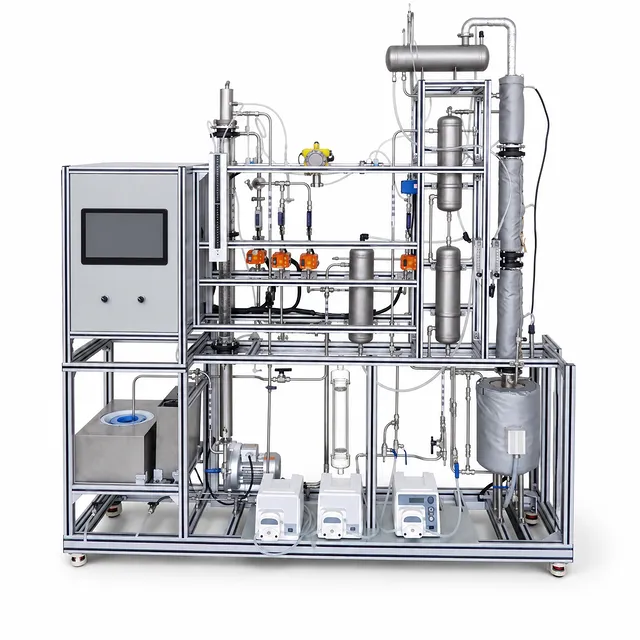

Carbon Dioxide Absorption and Desorption Educational Pilot Plant for Carbon Capture Studies
Item Number : LPK-TBJJX
Price varies based on specs and customizations
- Absorption Column
- Transparent borosilicate glass, packed column configuration
- Desorption Heating
- High-temperature electric heating jacket, up to 400°C
- Control Interface
- 15.6-inch industrial touchscreen terminal
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Introduction

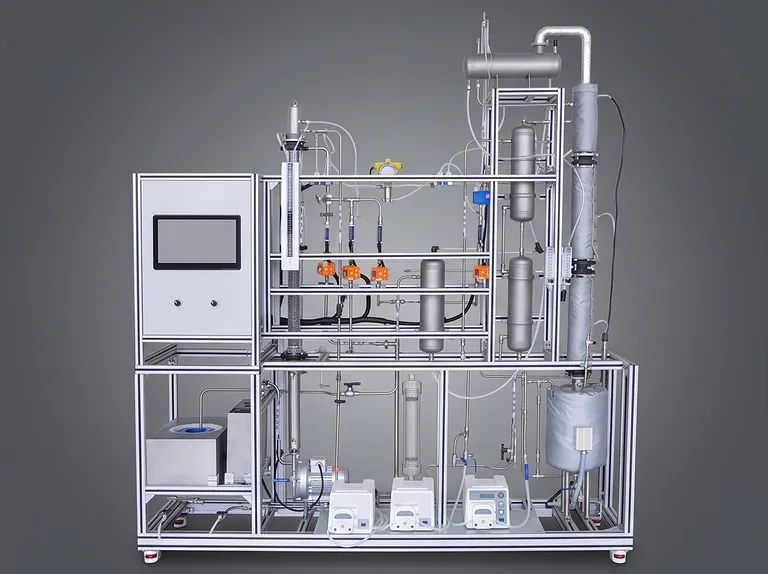

The Carbon Dioxide Absorption and Desorption Carbon Capture Educational Unit Operations Pilot Plant is an educational system designed for engineering departments in higher education. It provides undergraduate and graduate students with a hands-on, visually clear platform to study gas absorption and desorption processes, which are central to modern carbon capture technologies. By transitioning abstract mass transfer and thermodynamic principles into a physical, observable system, this pilot plant helps students bridge the gap between classroom theory and industrial environmental engineering practices.
To meet the diverse spatial constraints and syllabus requirements of different universities, both the hardware configurations and software control systems of this pilot plant can be customized. This ensures the equipment integrates into existing laboratory spaces while aligning with specific regional academic standards.
Key Pedagogical Features and Advantages
- Visual Mass Transfer Observation: The two-tower system utilizes transparent glass columns, allowing students to visually observe gas-liquid countercurrent flow, liquid holdup, wetting behavior, and hydrodynamic phenomena such as loading and flooding points.

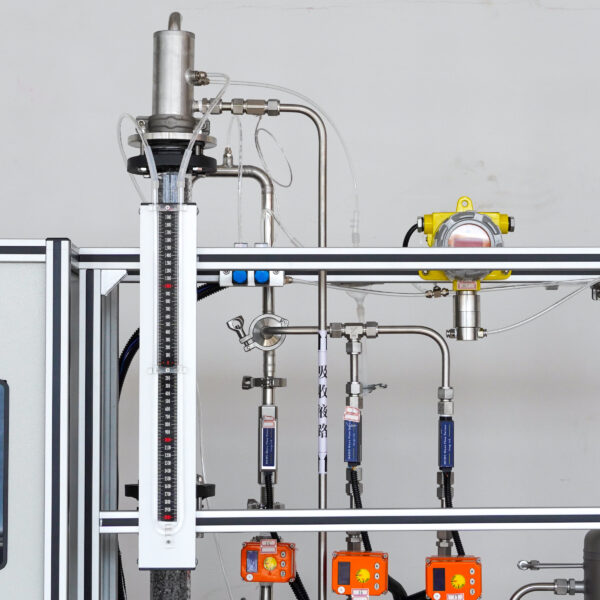

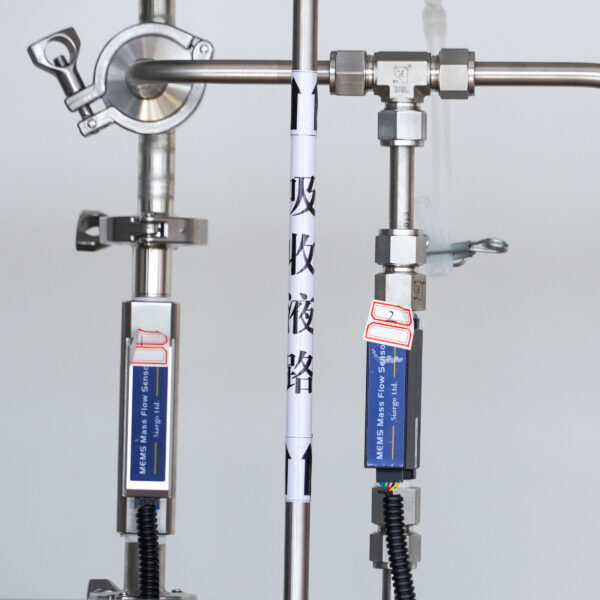

- Precision Measurement and Control: Equipped with gas and liquid mass flow meters and high-accuracy temperature sensors, the unit enables students to collect reliable quantitative data for calculating mass transfer coefficients and thermal efficiency.

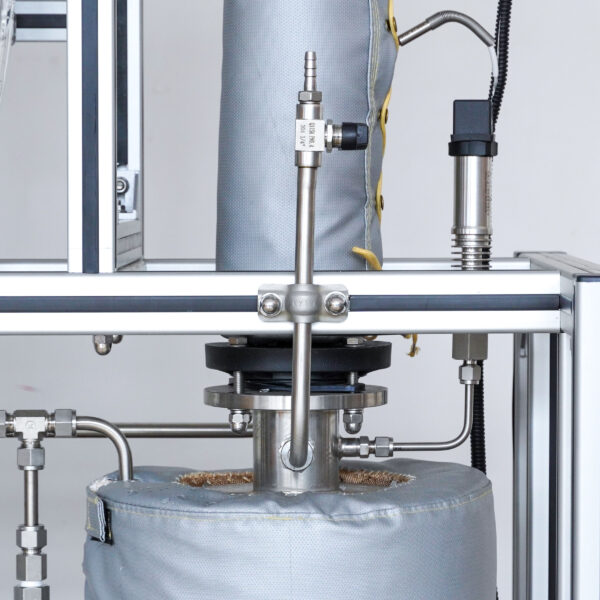

- Industrial-Scale Process Simulation: The desorption tower kettle features an electric heating jacket capable of operating at up to 400°C, simulating the high-temperature energy requirements necessary for solvent regeneration in industrial post-combustion carbon capture.
- Interactive Control Interface: A 15.6-inch touchscreen control panel supports real-time data visualization, wireless data transmission, and process monitoring, enhancing student engagement with modern, automated industrial control systems.
- Mobility and Lab Safety: Built on a durable aluminum alloy frame with heavy-duty adjustable casters, the compact pilot plant occupies minimal laboratory floor space and can be easily relocated.

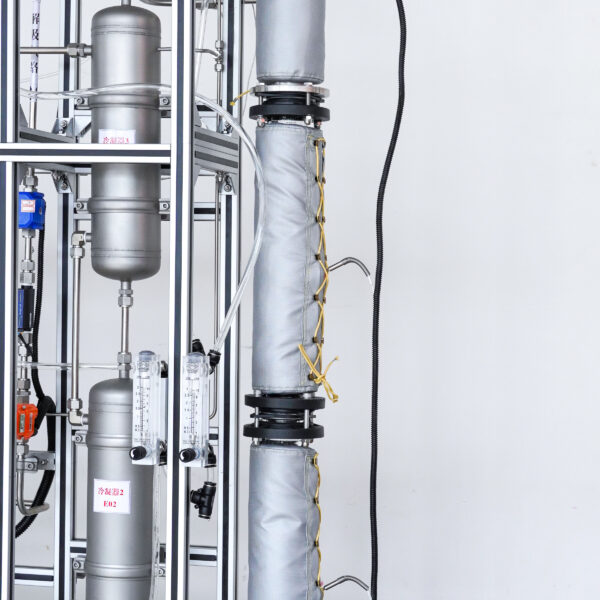

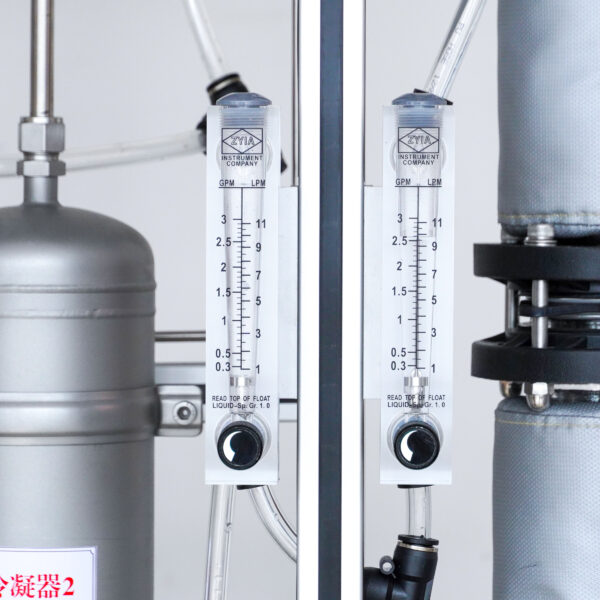

Detail & Parts
Technical Specifications
| Parameter / Component | Specification Details |
|---|---|
| System Dimensions | ≤ 2200 mm × 580 mm × 2500 mm (Length × Width × Height) |
| Structure Frame | High-strength aluminum alloy with lockable, adjustable casters |
| Absorption Column | Transparent borosilicate glass, packed column configuration |
| Desorption Column | Transparent borosilicate glass, packed column with integrated reboiler |
| Desorption Heating | High-temperature electric heating jacket, operational up to 400°C |
| Control Interface | 15.6-inch industrial touchscreen terminal |
| Data Transmission | Supports wireless data export and real-time remote monitoring |
| Instrumentation | Integrated gas mass flow meters, peristaltic liquid pumps, and temperature sensors |
Curriculum Integration and Experimental Modules
This pilot plant is designed to support core laboratory courses in Chemical Engineering, Environmental Engineering, Energy Engineering, and Food Technology. It aligns with fundamental unit operations and chemical design curricula, allowing instructors to assign practical laboratory exercises directly linked to standard textbook concepts.
| Experimental Module | Core Unit Operation & Knowledge Points | Associated Textbook & Concepts |
|---|---|---|
| Packed Tower Hydrodynamics | Pressure drop determination, loading point, flooding velocity, and gas-liquid flow regimes. | Unit Operations of Chemical Engineering - Flow of fluids through packed beds - Packed column design and flooding correlations |
| Carbon Dioxide Absorption | Gas-liquid mass transfer, solvent selection, two-film theory, and calculation of the height of a transfer unit (HTU). | Transport Processes and Unit Operations - Absorption of dilute gases in packed towers - Mass transfer theories and coefficients |
| Solvent Desorption & Regeneration | Thermal stripping, energy balance, solvent recovery, and reboiler duty calculation. | Chemical Engineering Design - Stripping column design - Energy integration and heat exchange in separation systems |
| System Efficiency Analysis | Overall mass transfer coefficient calculation ($K_G a$), influence of gas/liquid flow rates on absorption efficiency. | Unit Operations of Chemical Engineering / Transport Processes and Unit Operations - Gas-liquid equilibrium - Rate-based mass transfer in columns |
Customization and Tailored Solutions
We recognize that every academic institution has specific teaching goals and facility limitations. The Carbon Dioxide Absorption and Desorption Carbon Capture Educational Unit Operations Pilot Plant can be fully customized in both its hardware and software configurations. This includes modifying column dimensions, integrating alternative analytical sensors, adjusting the heating capacities, or customizing the user interface to match specific course curricula.
