Multifunctional Membrane Separation Educational Pilot Plant with Ultrafiltration, Nanofiltration, Reverse Osmosis

Introduction

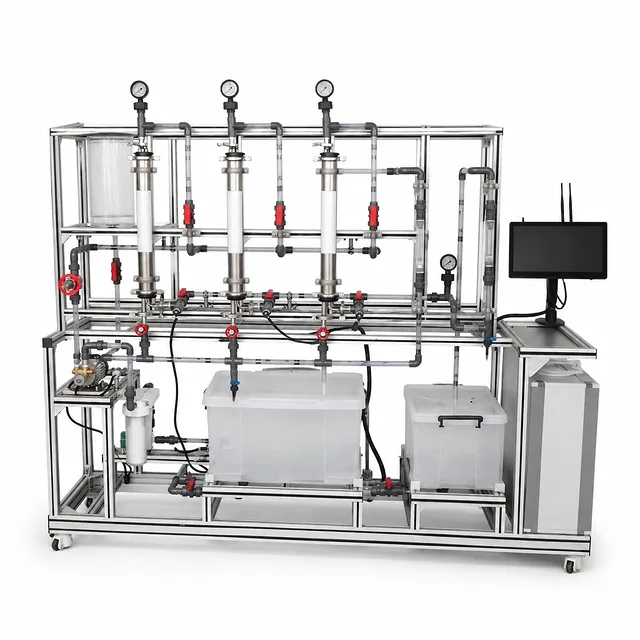

The Multifunctional Membrane Separation Educational Unit Operations Pilot Plant is an integrated laboratory bench-scale system designed for higher education engineering laboratories. This platform combines three core membrane filtration processes—Ultrafiltration (UF), Nanofiltration (NF), and Reverse Osmosis (RO)—into a single, compact unit. Engineered specifically for undergraduate and graduate-level instruction, the plant allows students to examine membrane transport phenomena, calculate separation efficiencies, and gain hands-on experience with industrial-grade control interfaces. The system includes transparent process lines for visual tracking of fluid dynamics alongside an integrated digital testing suite to support instructors in student assessment and lab management.

Customization and Flexibility

To accommodate varying laboratory footprints, curriculum structures, and research focuses, this pilot plant features a fully adaptable design. Both the hardware and software configurations can be customized to meet the specific requirements of your department. Hardware modifications can include adjustments to membrane sizes, sensor ranges, piping layouts, and auxiliary pump specifications. Software customization allows for the integration of tailored data acquisition layouts, specialized control loops, and localized language configurations to align with your institutional standards.

Key Features and Educational Benefits

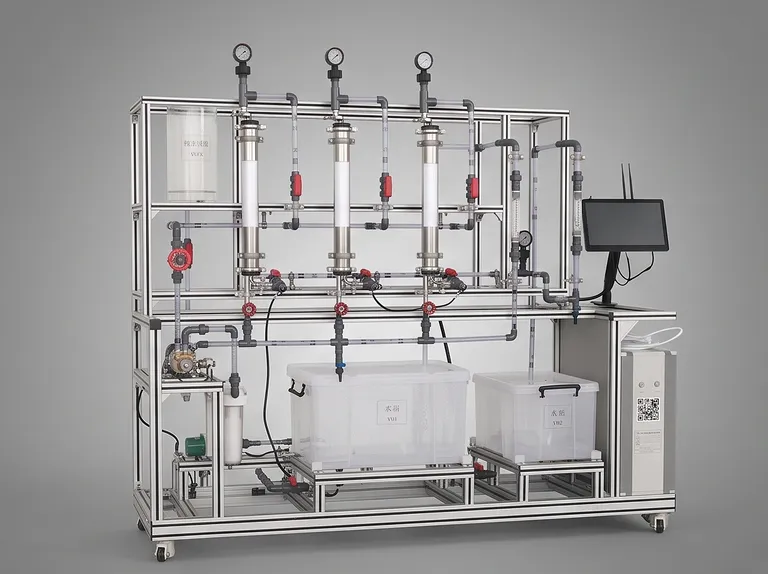

• Integrated Three-in-One Membrane System: Houses Ultrafiltration, Nanofiltration, and Reverse Osmosis modules on a single skid, allowing students to conduct direct comparative studies on pore size selectivity, operating pressures, and separation mechanics.
• Broad Range of Separation Applications: Engineered to demonstrate diverse chemical and environmental processes, including the concentration of macromolecular proteins (UF), the softening of water through divalent calcium and magnesium ion removal (NF), and the desalination of small-molecule salts (RO).
• Industrial Process Control Visualization: Equipped with an industrial touch-screen Human-Machine Interface (HMI) and Programmable Logic Controller (PLC). This configuration exposes students to industrial automation systems, sensor calibration, and real-time data monitoring.
• Flow Path Transparency: High-visibility transparent piping allows students to observe fluid behavior, flow distribution, and physical changes within the system during operation.
• Academic Assessment Software Suite: Includes a dedicated digital platform that enables instructors to build custom question banks, design exams with varied question types (such as multiple-choice and true/false), set custom grading weights, and automatically compile student performance analytics.

Detail & Parts

Technical Specifications and Experimental Modules

Curriculum Alignment and Academic Integration

This pilot plant is designed to serve as a physical bridge between textbook theory and practical engineering application. It directly supports laboratory coursework in departments of Chemical Engineering, Environmental Engineering, Food Engineering, and Water Resources.

By performing hands-on runs, students can gather empirical data to solve foundational equations found in standard academic curricula. The table below outlines how the plant’s capabilities align with core concepts in widely utilized engineering textbooks:

Tailored Configurations for Specialized Research and Teaching

To ensure that the pilot plant fits seamlessly into your existing curriculum, LABPARK provides comprehensive support for bespoke configurations. Whether your laboratory focuses on municipal wastewater treatment development, food juice concentration processes, or basic mass-transfer teaching, both the software controls and physical hardware components can be adapted. This ensures your students work with a system that mirrors the specific industrial standards and research methodologies prioritized by your institution.
