Comprehensive Fluid Mechanics Educational Unit Operations Pilot Plant
Item Number : LPK-BFMC-C
Price varies based on specs and customizations
- Experiment Coverage
- Over 13 fluid mechanics principles
- Pipe Flow Studies
- Smooth and rough piping, laminar and turbulent flow
- Pump Performance Testing
- Centrifugal pump characteristic curves
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Introduction

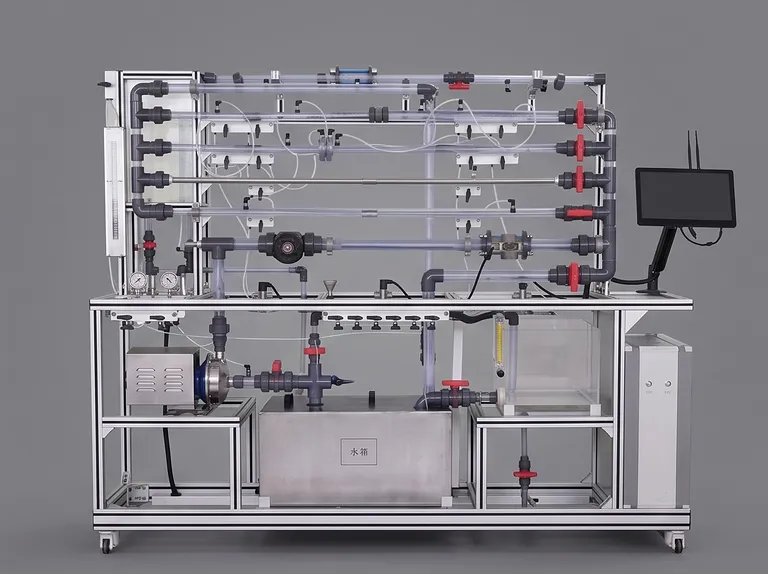

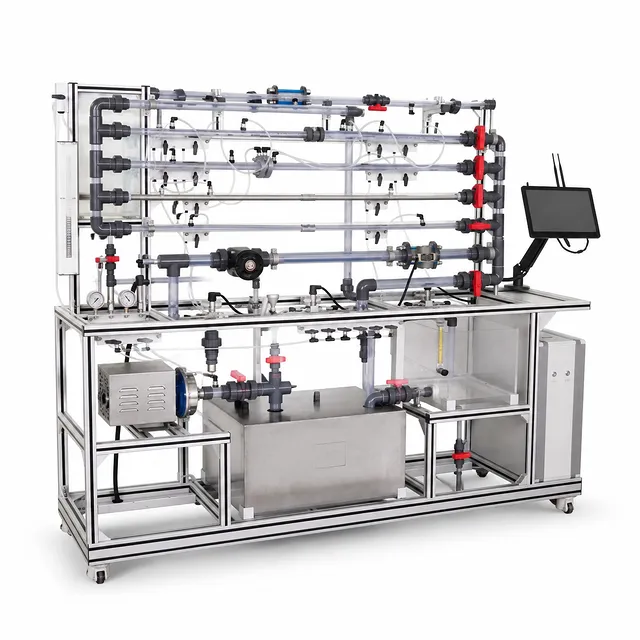

The Comprehensive Fluid Mechanics Educational Unit Operations Pilot Plant is an integrated laboratory training system designed for higher education institutions. This equipment provides engineering students with hands-on, practical experience in fluid dynamics, pipe flow characteristics, and centrifugal pump operations. By bridging the gap between theoretical classroom lectures and industrial process applications, it helps students develop essential experimental skills, diagnostic capabilities, and a deeper understanding of transport phenomena.
Customization Options
To accommodate diverse laboratory layouts and specific course curricula, this pilot plant features highly flexible customization options. Both the hardware components and the digital software interface can be fully tailored to meet your department’s specific instructional requirements, ensuring seamless alignment with your educational goals.
Key Pedagogical Features and Advantages
- Multifunctional Fluid Testing Circuits: Consolidates over 13 distinct fluid mechanics principles into a single, compact unit, optimizing laboratory space and capital investment.

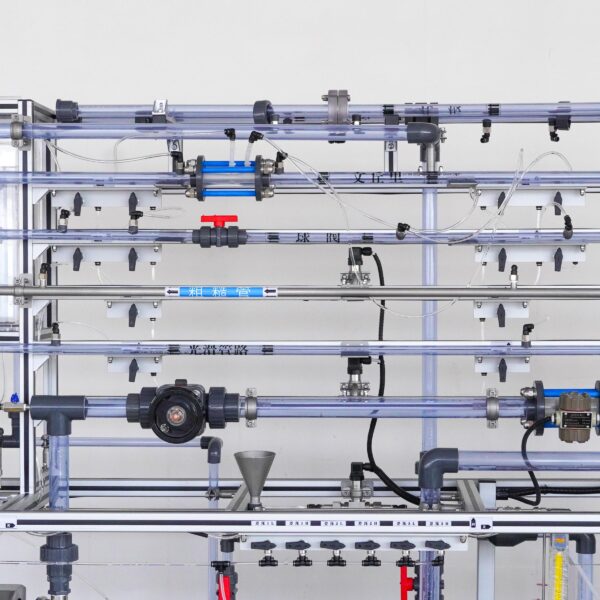

- Industrial-Grade Piping and Fittings: Utilizes a variety of pipe diameters, surface roughness profiles, and industrial valves to provide a realistic engineering environment.
- Dual Flow Measurement Standards: Features both Venturi and orifice plate flowmeters, allowing comparative analysis of flow coefficient variations and permanent pressure losses.
- Integrated Centrifugal Pumping System: Enables the determination of pump performance curves alongside system resistance curves to demonstrate practical liquid transport design.

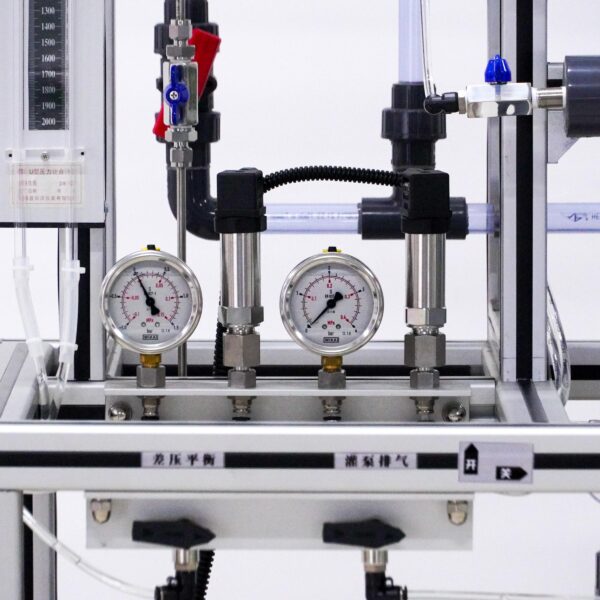

- Rigorous Quantitative Instrumentation: Equipped with an inverted U-tube manometer and a volumetric calibration tank for direct physical verification of digital readings.
- Durable Construction: Built on a high-grade, corrosion-resistant aluminum alloy profile frame with lockable casters for easy relocation and long-term durability in active teaching labs.
Detail & Parts
Technical Specifications and Experimental Modules
| Module / System Component | Description & Target Measurements |
|---|---|
| Physical Dimensions | Maximum footprint: 2200 mm × 580 mm × 1800 mm (L × W × H) |
| Frame & Structural Support | High-quality, industrial-grade aluminum alloy profile with heavy-duty swivel casters |
| Pipe Flow Evaluation | - Smooth and rough piping sections (thin and thick) - Laminar and turbulent flow regimes - Straight pipe resistance coefficient ($\lambda$) vs. Reynolds number ($Re$) |
| Local Resistance Analysis | - Minor losses in abrupt contraction pipelines - Local resistance coefficient ($\zeta$) of standard process valves |
| Flow Metering Stations | - Orifice plate flowmeter & Venturi flowmeter calibration - Flow coefficients ($C_o$, $C_v$) vs. Reynolds number ($Re$) - Evaluation of permanent pressure drop across metering devices |
| Pumping Operations | - Centrifugal pump characteristic curves (Head, Power, and Efficiency vs. Flow Rate) - Pipeline system curve plotting and operating point determination |

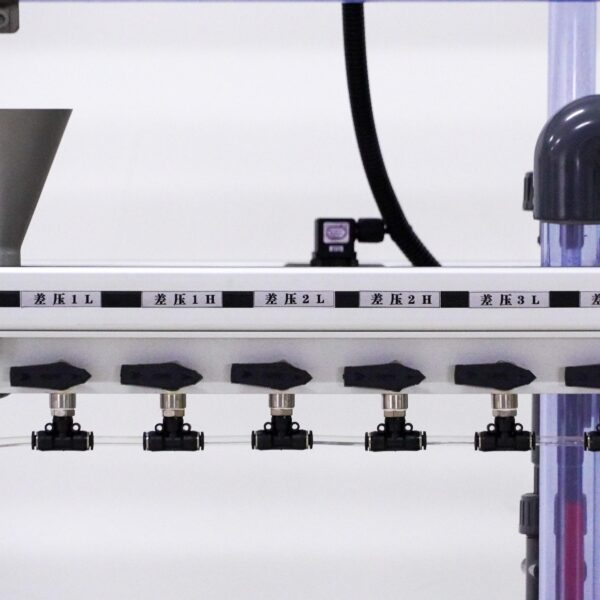

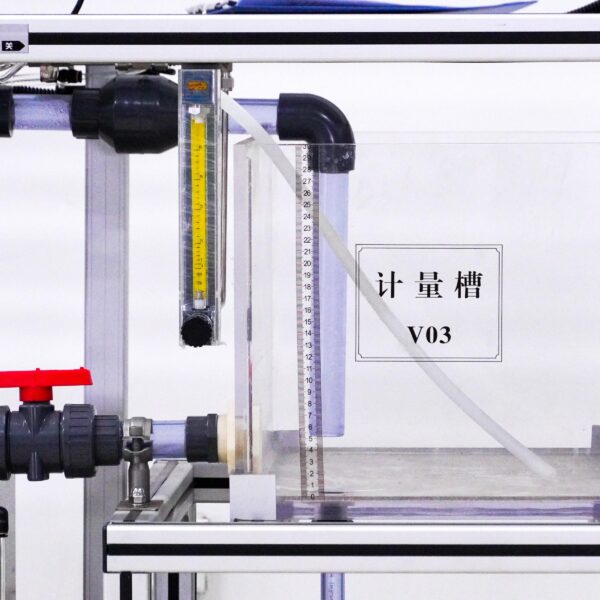

| Calibration & Static Measurement | High-level water tank, inverted U-tube manometer, and volumetric calibration vessel |
Academic Alignment and Curriculum Integration
This educational pilot plant is engineered to support laboratory courses across multiple engineering disciplines, including Chemical Engineering, Civil and Environmental Engineering, Food Engineering, and Bioprocess Technology. By matching experimental outputs to the core terminology used in major academic literature, the equipment reinforces students' grasp of fundamental unit operations.
| Experimental Module | Core Knowledge Points | Directly Correlated Textbook Terminology |
|---|---|---|
| Pipe Friction Losses | Fluid friction in conduits, laminar flow development, boundary layer effects, Colebrook equation, Moody chart. | Unit Operations of Chemical Engineering Transport Processes and Unit Operations |
| Minor Fittings Losses | Form friction, local resistance coefficients, expansion/contraction energy losses, equivalent length method. | Unit Operations of Chemical Engineering Chemical Engineering Design |
| Flow Meter Calibration | Conservation of mass and energy, Bernoulli’s equation, discharge coefficients, restriction flowmeters, pressure recovery. | Transport Processes and Unit Operations Unit Operations of Chemical Engineering |
| Pumping Performance | Fluid machinery, net positive suction head (NPSH), system curve matching, pump efficiency, brake horsepower. | Chemical Engineering Design Transport Processes and Unit Operations |
Tailored Hardware and Software Solutions

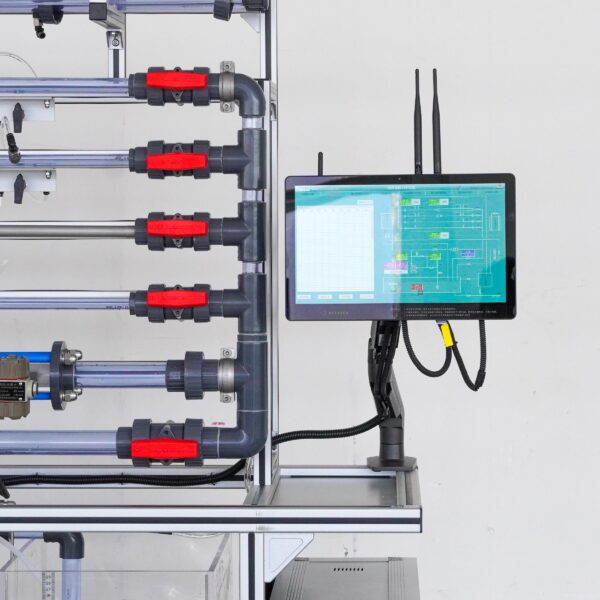

Recognizing that academic departments have unique teaching objectives and space limitations, we offer comprehensive hardware and software customization. Whether your syllabus requires customized pipe materials, integrated digital data acquisition systems, or dedicated analysis software dashboards, our engineering team can adapt the pilot plant configurations to integrate smoothly into your laboratory curriculum.
