Hot Filtration Educational Unit Operations Pilot Plant Laboratory System

Introduction

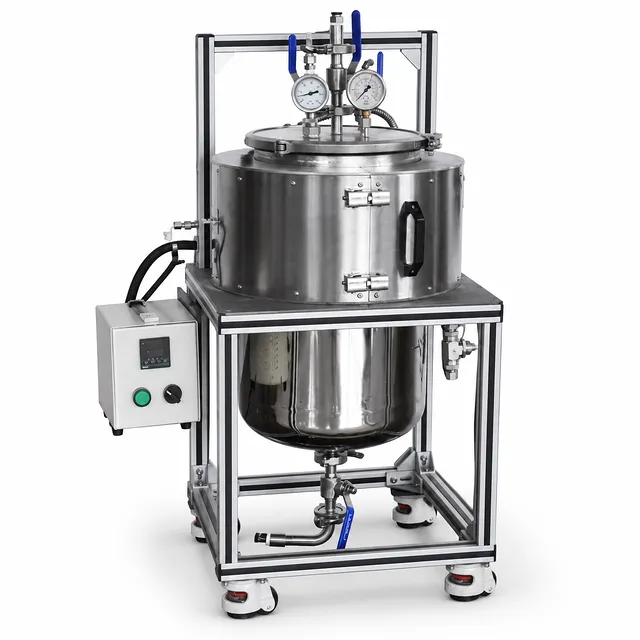

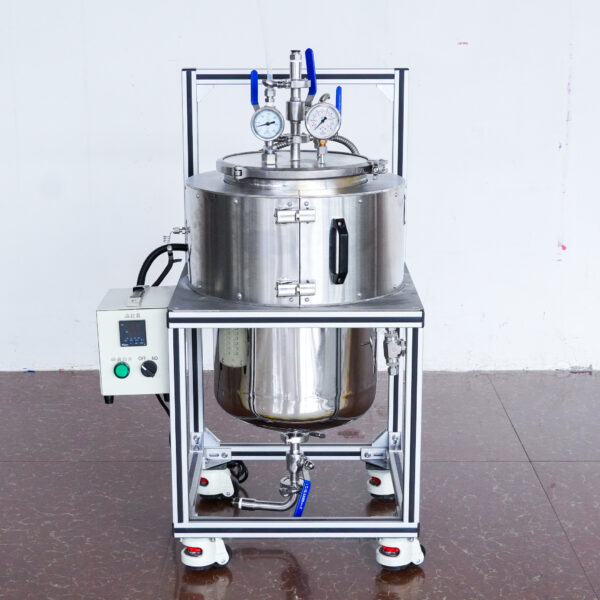

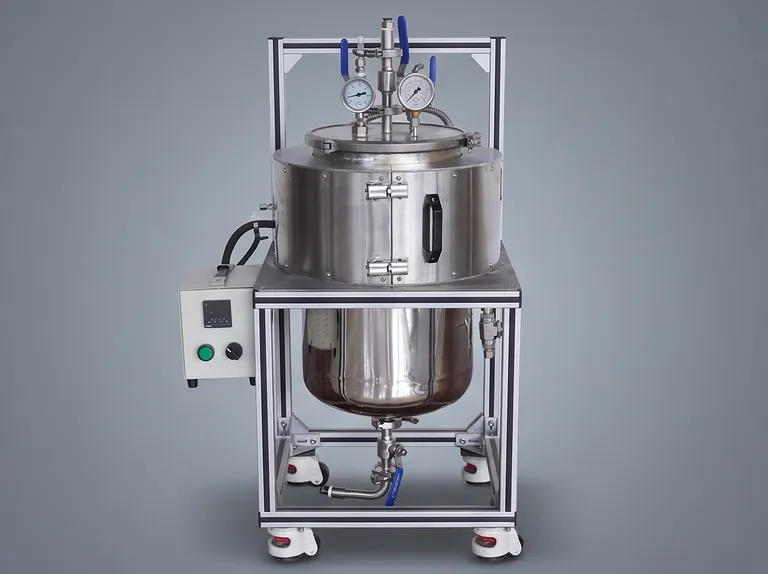

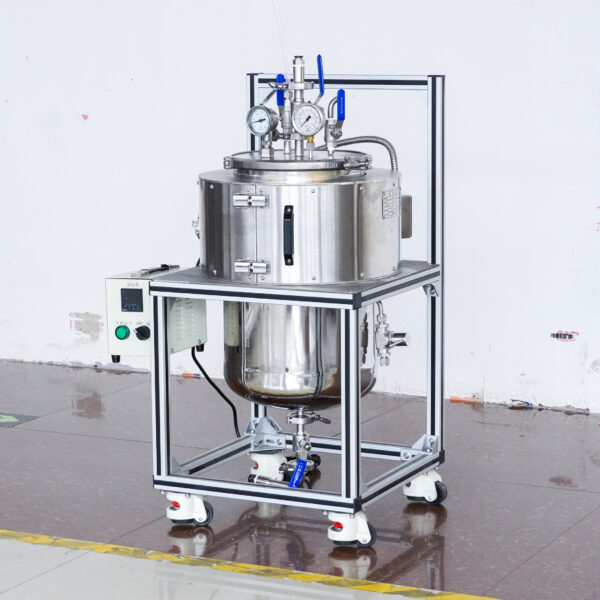

The Hot Filtration Educational Unit Operations Pilot Plant is an integrated laboratory bench-scale system designed for engineering education. It enables students to investigate the principles of solid-liquid separation under controlled thermal conditions. The system features a specialized stainless-steel filtration vessel equipped with a removable heating jacket and a multi-layer filter plate assembly. By preventing heat loss during the filtration process, the pilot plant allows for the study of viscous fluids, saturated solutions, and temperature-sensitive slurries without premature crystallization or precipitation. It provides university students with a hands-on platform to bridge the gap between theoretical transport phenomena and industrial-scale filtration processes.

Hardware and Software Customization

To accommodate diverse laboratory layouts and specific curriculum requirements, this educational pilot plant supports extensive customization. LABPARK can modify both the hardware components—such as vessel capacities, sensor ranges, material upgrades, and piping configurations—and the software modules, including data acquisition interfaces and control system parameters. This flexibility ensures the equipment aligns with your department's specific instructional goals and physical space constraints.

Pedagogical Objectives and Key Features

Designed specifically for university instructors and engineering professors, this pilot plant emphasizes practical, hands-on engineering competencies. The system facilitates the instruction of several core educational objectives:

• Understanding Filtration Mechanisms: Students can study the differences between cake filtration and depth filtration using the built-in three-layer filter plate assembly.
• Thermal Process Control: The integration of a digital temperature controller and a removable heating jacket allows students to analyze the direct impact of temperature and viscosity on filtration rate and pressure drop.

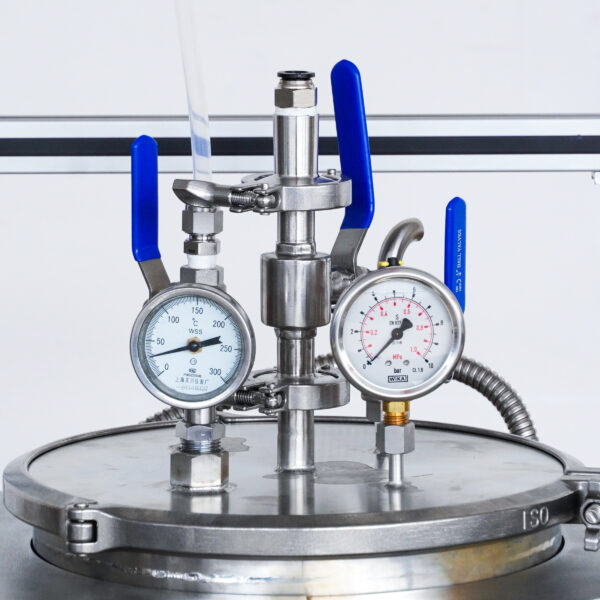

• Operational Safety Literacy: Equipped with dual pressure gauges, secure quick-installation clamp plates, and over-temperature safety monitoring, the device helps students develop essential industrial safety protocols.

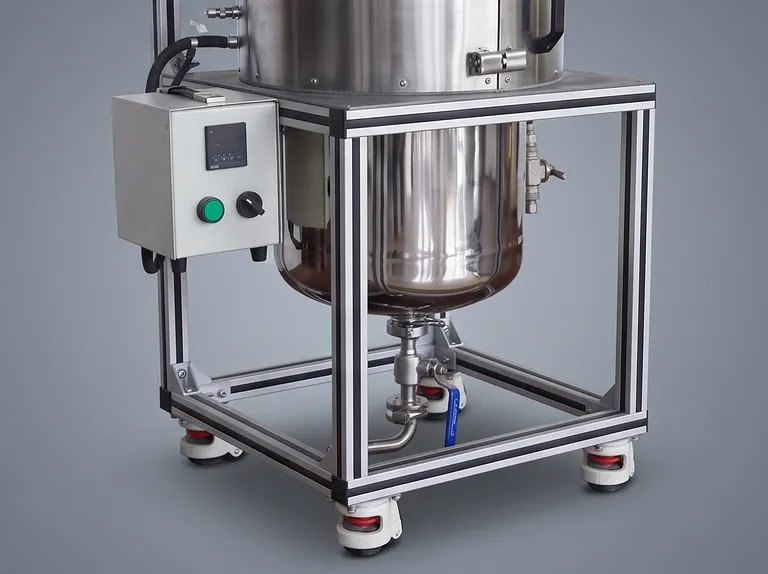

• Robust Materials and Industrial Layout: Constructed from corrosion-resistant 304 stainless steel and mounted on a heavy-duty aluminum profile frame with locking casters, the plant represents industrial-standard pilot installations.

Detail & Parts

Technical Specifications and Curriculum Mapping

Academic Applications and Curriculum Integration

This educational pilot plant serves as a practical extension for core courses within Chemical Engineering, Environmental Engineering, Food Engineering, and Pharmaceutical Technology.

By conducting laboratory sessions with this unit, students can directly apply and validate the mathematical models and empirical equations found in classic academic textbooks:

• Chemical Engineering: The device provides physical validation for the filtration equations presented in Unit Operations of Chemical Engineering, allowing students to calculate specific cake resistance and filter medium resistance under varying thermal conditions.
• Transport Phenomena: In alignment with Transport Processes and Separation Process Principles (formerly Transport Processes and Unit Operations), the system demonstrates the coupled effects of fluid dynamics (pressure drop through packed beds) and heat transfer (thermal jacket dynamics on fluid viscosity).
• Process and Plant Design: Using principles from Chemical Engineering Design, instructors can guide students through scaling exercises, mass and energy balances, and process safety evaluations using the physical pilot plant as a reference model.

Both the hardware configurations and software control loops can be customized to support advanced student design projects, thesis research, or specialized laboratory experiments tailored to your institution's specific academic standards.
