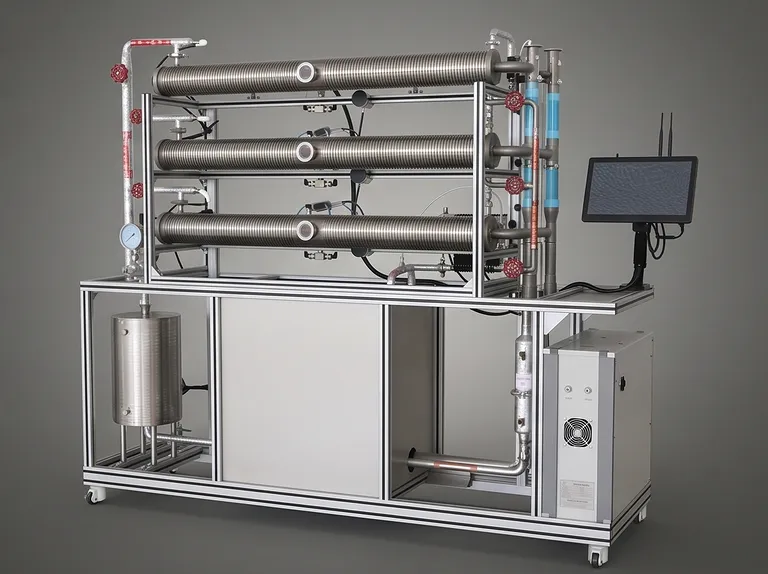

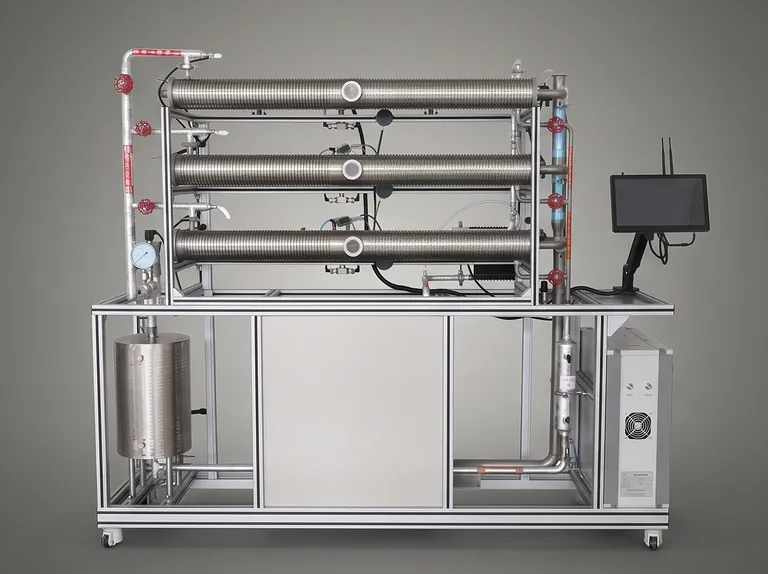

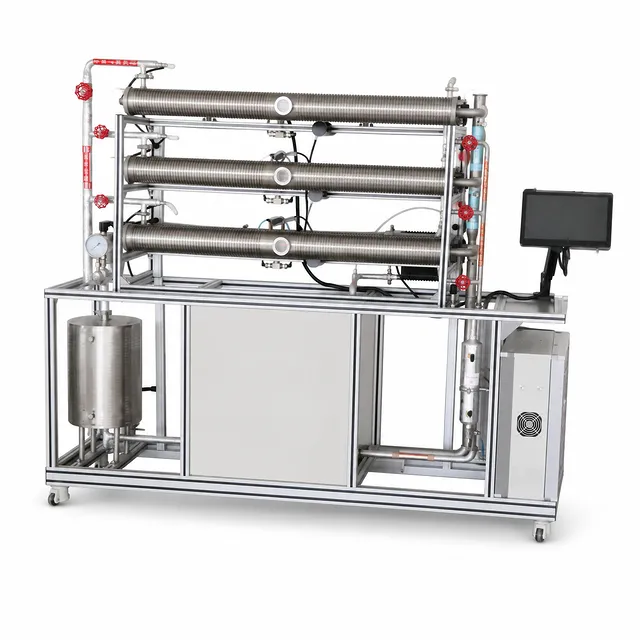

Three-Tube Heat Transfer Educational Pilot Plant for Unit Operations Training

Introduction

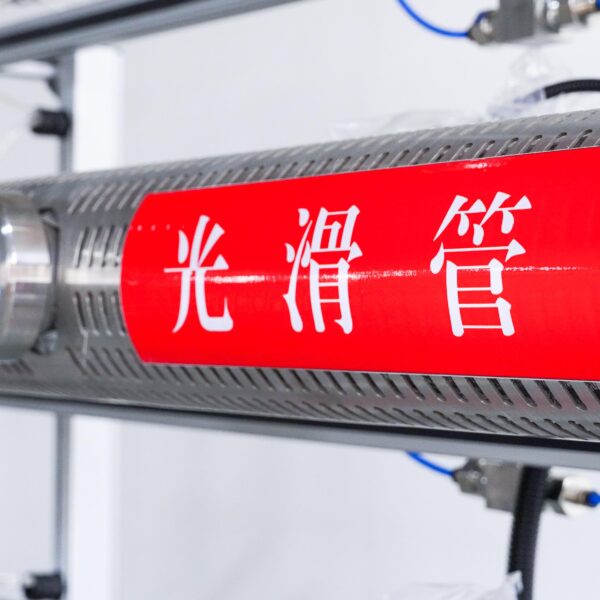

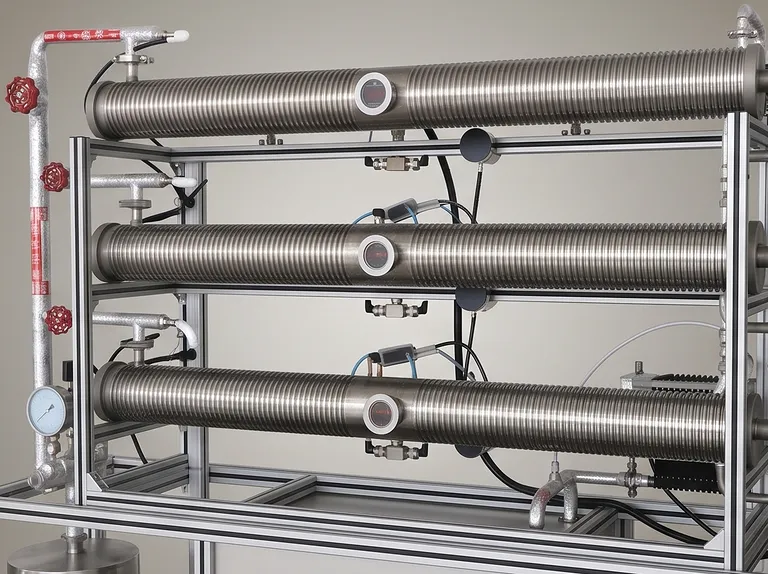

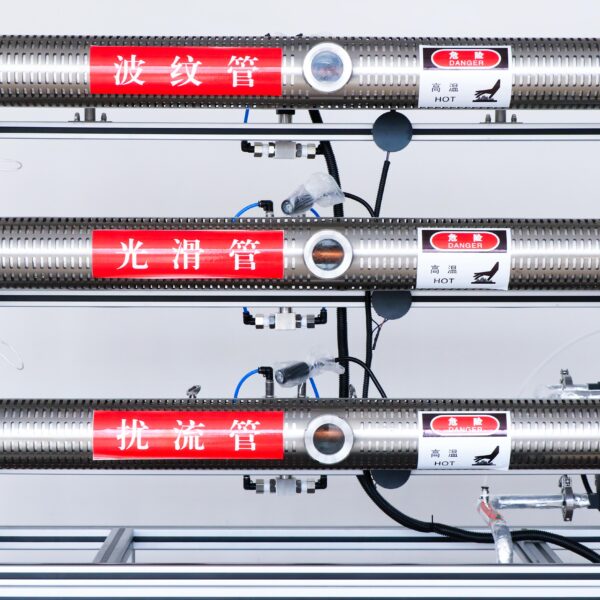

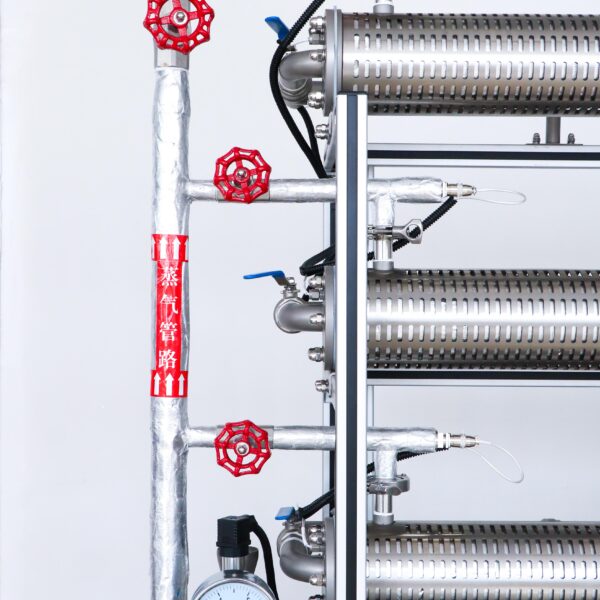

The Three-Tube Heat Transfer Educational Unit Operations Pilot Plant is an integrated laboratory training system designed for engineering students to investigate convective heat transfer mechanisms and vapor condensation principles. Featuring three distinct tube configurations—smooth, corrugated, and turbulent—the system provides a practical platform for comparative analysis of heat transfer enhancement techniques and condensation phenomena. This unit is developed to align with core laboratory syllabi and support engineering education accreditation by translating theoretical thermodynamic principles into observable physical processes.

To accommodate varying laboratory spaces, experimental curricula, and technological infrastructures, this pilot plant features a flexible design. Both the hardware components and the software interface can be customized to meet the specific pedagogical and technical requirements of your institution.

Key Teaching Functions and Advantages

• Comparative Analysis of Heat Transfer Enhancement: Allows students to measure and compare the heat transfer coefficients of three distinct pipe designs under identical operational parameters, highlighting the engineering trade-offs of modern heat exchanger design.
• Empirical Correlation Verification: Facilitates the direct determination of constants $A$ and $m$ in the convective heat transfer correlation $Nu=ARe^mPr^{0.4}$ inside circular straight tubes.
• Vapor Condensation Evaluation: Enables the determination of the overall heat transfer coefficient ($K_o$) and the external vapor condensation heat transfer coefficient ($\alpha_o$), providing a quantitative comparison with the internal convective heat transfer coefficient ($\alpha_i$).
• Visual Study of Condensation Mechanisms: Provides clear visual monitoring to help students distinguish between filmwise condensation and dropwise condensation on various outer tube surfaces.

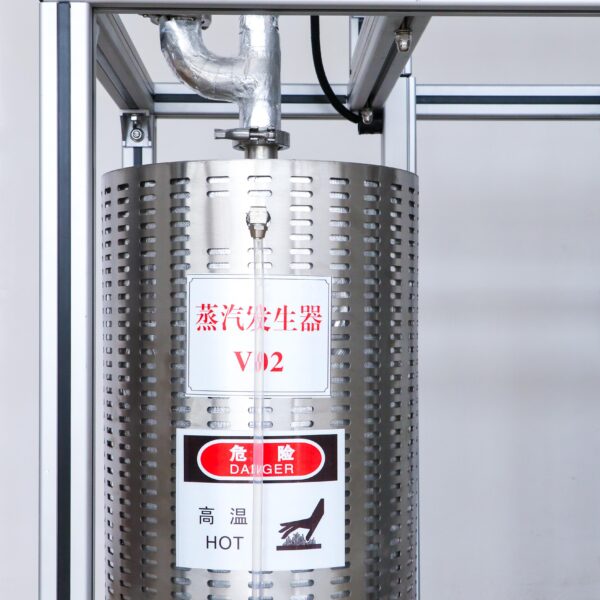

• Eco-Friendly and Closed-Loop Operation: Features a steam condensate recovery loop that recaptures vented steam, eliminating the need for continuous distilled water replenishment and reducing utility consumption during lab sessions.
• Multi-Tiered Safety Systems: Built with essential safety measures including a mechanical water seal, integrated pressure sensors, and automatic overpressure alarms to ensure a reliable learning environment.

Detail & Parts

Technical Specifications

Academic Alignment and Curriculum Integration

This educational pilot plant is designed for core engineering disciplines including Chemical Engineering, Environmental Engineering, Food Engineering, and Process Equipment and Control Engineering. The experimental modules map directly to fundamental concepts found in widely adopted engineering textbooks, reinforcing the transition from theoretical classroom learning to physical engineering practice.

By utilizing terms and concepts directly aligned with these standard curricula, the pilot plant serves as a practical extension of the lecture hall, helping students grasp the physical realities of thermal resistances, fluid dynamics, and energy conservation.

Hardware and Software Customization

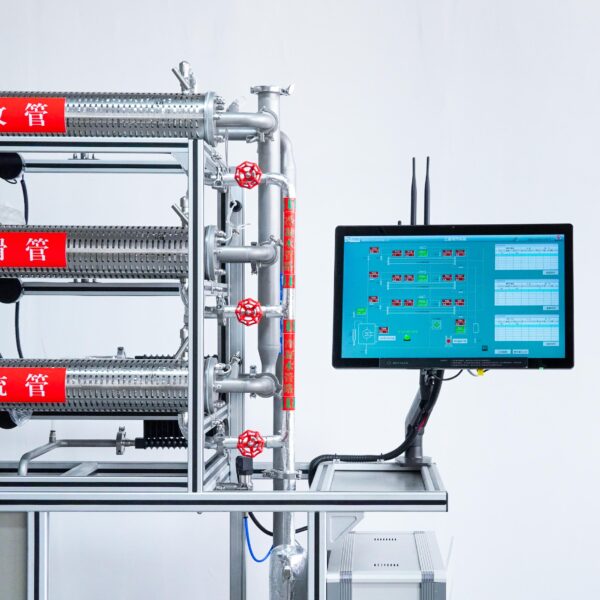

We recognize that different university departments operate under unique laboratory constraints and curriculum goals. To ensure this equipment fits your teaching requirements, LABPARK offers comprehensive customization services. The hardware configuration—including sensor selection, material specifications, and piping layout—as well as the software suite (covering data acquisition, control interfaces, and teaching modules) can be adapted to align with your specific laboratory objectives.
