Residence Time Distribution and Reactor Flow Characteristics Determination Educational Pilot Plant

Introduction

The Residence Time Distribution and Reactor Flow Characteristics Determination Educational Unit Operations Pilot Plant is an integrated, bench-scale laboratory system designed for undergraduate and graduate engineering education. It provides students with hands-on experience in analyzing non-ideal flow behavior, determining residence time distributions (RTD), and comparing the performance of continuous stirred-tank reactors (CSTRs) in series against tubular reactors under varying recycle conditions. By utilizing a precise pulse tracer method coupled with digital data acquisition, this pilot plant bridges the gap between theoretical reactor design equations and practical chemical reaction engineering principles.

System Customization

To accommodate diverse laboratory layouts, specific teaching methodologies, and varying curriculum requirements, this educational pilot plant offers comprehensive customization options. Institutions can request modifications to both the hardware components—such as reactor volumes, piping configurations, and sensor integrations—and the software interface, including data acquisition layouts and analytical modules. This flexibility ensures the equipment integrates seamlessly into existing laboratory spaces and aligns precisely with specific instructional goals.

Detail & Parts

Key Pedagogical Features and Engineering Practice Value

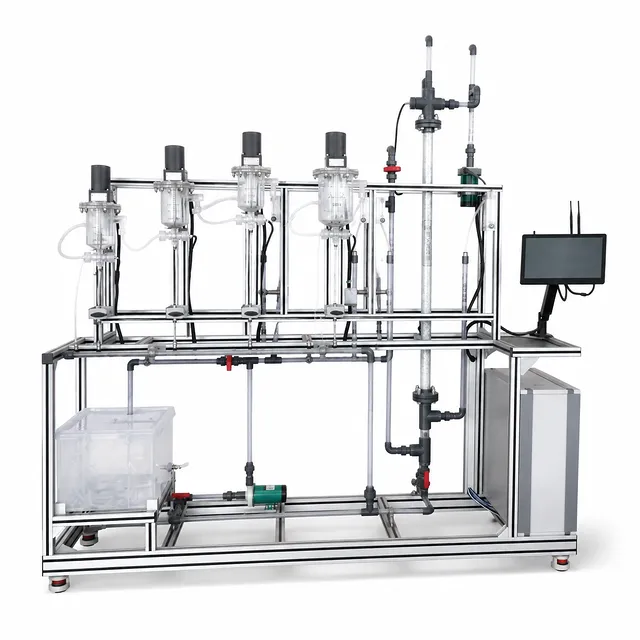

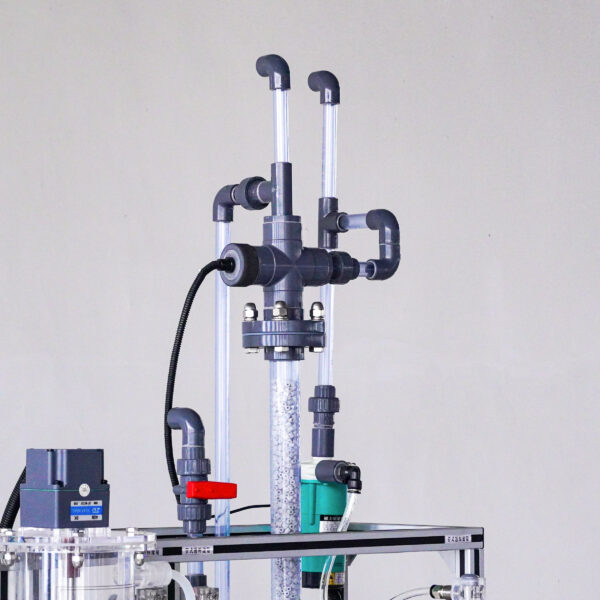

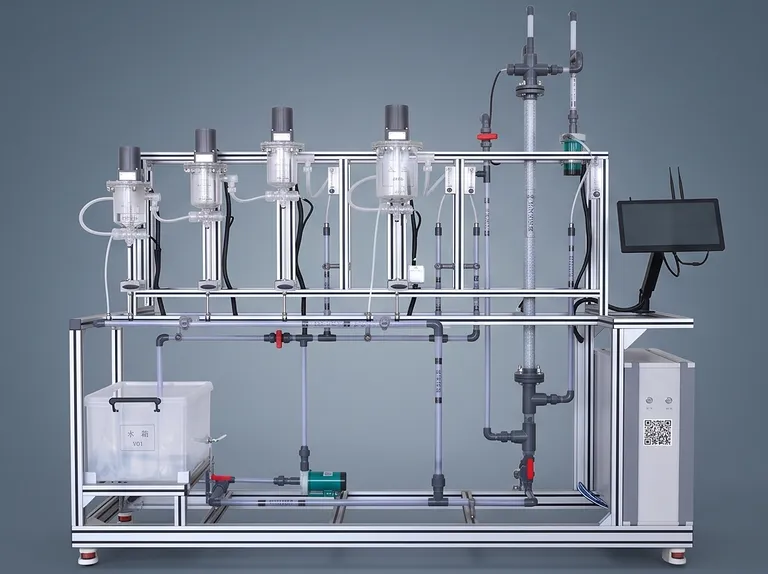

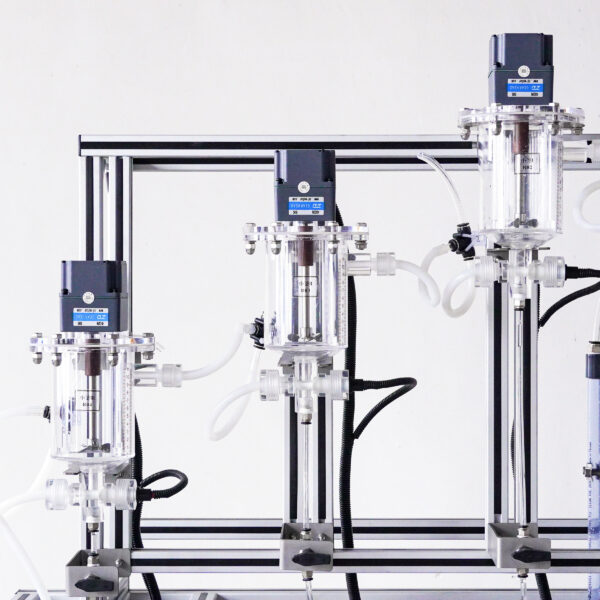

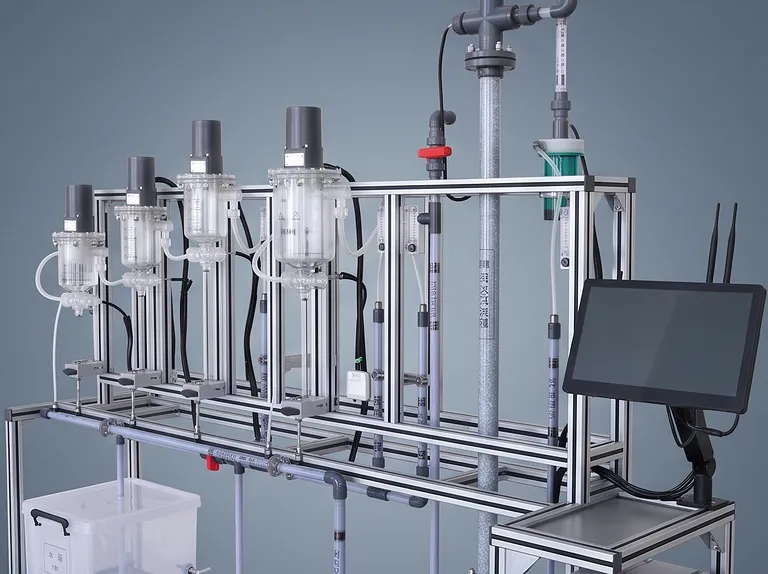

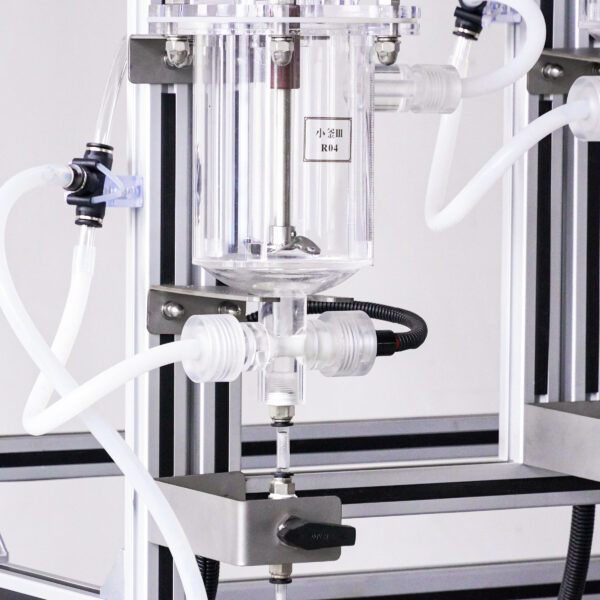

• Dual Reactor Configuration: Features multiple continuous stirred-tank reactors (CSTRs) arranged in series alongside a dedicated tubular reactor, allowing direct, side-by-side comparison of different reactor geometries and flow behaviors.
• Variable Circulation Loop: Designed with an adjustable circulation system that allows operations under no-circulation and variable circulation ratios ($R$). This enables quantitative studies of backmixing and its impact on reactor performance.

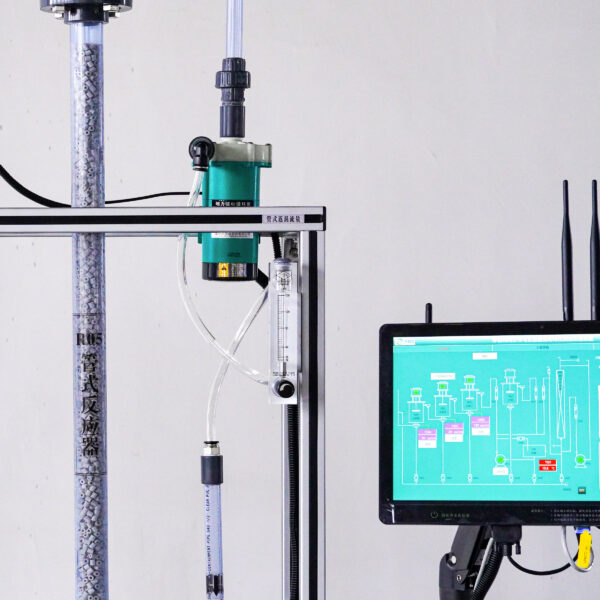

• Automated Analytical Software: Equipped with a dedicated data acquisition system that processes tracer concentration data in real time, generating RTD curves ($E(t)$ and $F(t)$ functions) and calculating model parameters automatically.
• Industrial-Grade Construction: Built on a robust, mobile aluminum profile frame with integrated casters, introducing students to industrial-type piping, valves, and structural configurations.

Technical Specifications and Experimental Modules

The following table details the technical specifications of the pilot plant and maps the experimental modules to core chemical engineering concepts.

Curriculum Integration and Textbook Mapping

This pilot plant is designed to support core laboratory courses in Chemical Engineering, Environmental Engineering, and Food Engineering. The physical phenomena demonstrated by the equipment—such as non-ideal flow, dispersion, and macromixing—are direct practical representations of the theoretical models discussed in leading undergraduate textbooks.

By conducting experiments on this unit, students can validate the mathematical derivations found in:

• Unit Operations of Chemical Engineering: Directly relates to sections discussing mixing, agitation, and the behavior of continuous-flow vessels.
• Transport Processes and Unit Operations: Aligns with topics covering mass transfer, concentration profiles in flowing systems, and the principles of plug flow and mixed flow.
• Chemical Engineering Design: Supports student projects involving reactor sizing, safety margins for non-ideal flows, and the scaling up of CSTR and tubular reactor networks.

The table below outlines how specific laboratory sessions correspond to standard textbook topics:

Both the hardware components and the analytical software of this pilot plant can be customized to align with specific academic syllabi, ensuring that the laboratory exercises match the terminology and theoretical depth of your department's chosen textbook.
