Solid Waste Pyrolysis and Refining Educational Pilot Plant for Unit Operations
Item Number : LPK-ISOP
Price varies based on specs and customizations
- Primary Structural Material
- High-grade 304 and 316 stainless steel
- Pyrolysis Heating System
- Ceramic fiber electric heating furnace with integrated PID temperature controllers
- Control Interface
- 15.6-inch industrial touchscreen with remote cloud data monitoring (5G/Bluetooth)
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Introduction

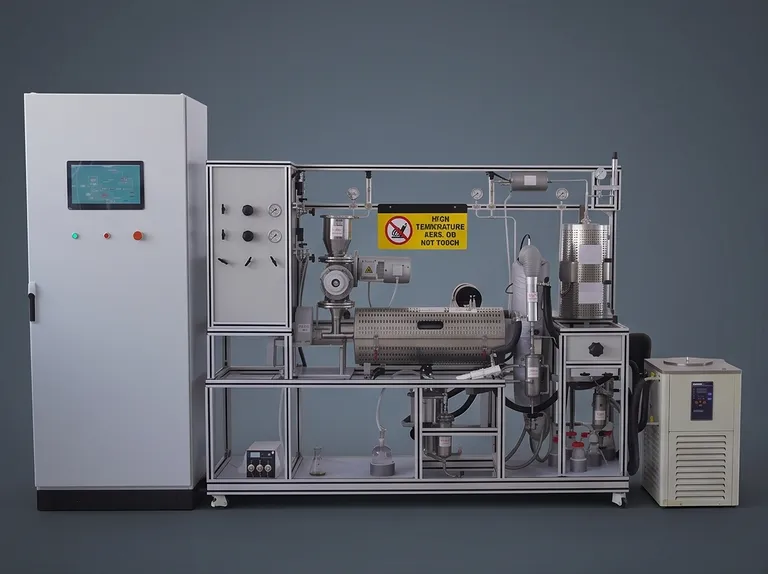

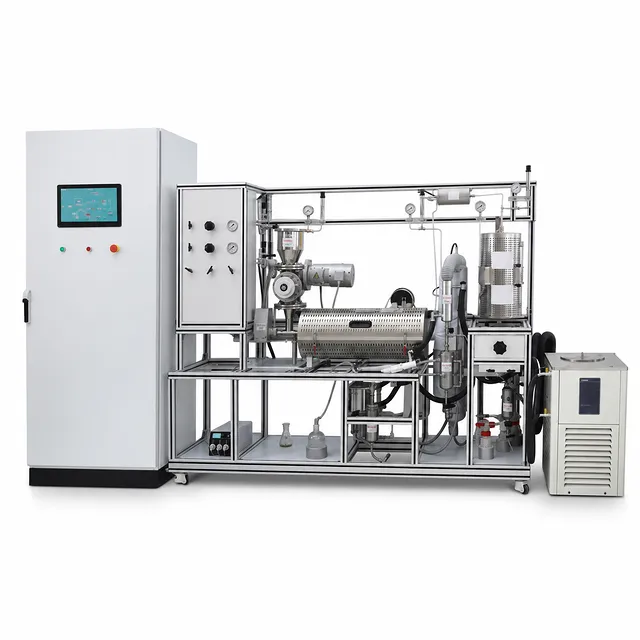

The Solid Waste Pyrolysis and Refining Educational Unit Operations Pilot Plant is an integrated, pilot-scale laboratory system designed to bridge the gap between theoretical textbook concepts and practical industrial applications. Developed specifically for engineering departments in higher education, this pilot plant enables students to explore the thermochemical conversion of solid waste and the subsequent multi-stage refining of pyrolysis oil. By combining solid waste pyrolysis, gas-liquid-solid separation, fractional distillation, and catalytic hydrogenation (including desulfurization and denitrification) into a single operating unit, the system provides a comprehensive platform for teaching fundamental chemical and environmental engineering principles.
Customization Capabilities
To meet the specific requirements of different university curricula, laboratory spaces, and research focus areas, this pilot plant features a highly adaptable design. We offer comprehensive customization options covering both the hardware and software components. This ensures the equipment can be tailored to match the precise scale, sensor configurations, and user interface preferences of your academic institution.
Key Educational Features and Advantages
- Integrated Process Workflow: Demonstrates a complete, closed-loop resource recovery process, from raw solid waste feed to high-quality, refined chemical products.

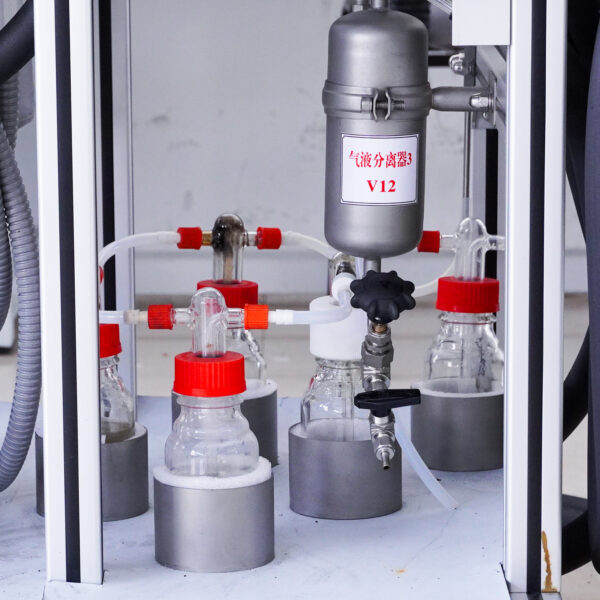

- Visual Observation Windows: Built with durable glass gas-liquid separators and glass distillation column bodies, allowing students to visually monitor phase changes, reflux behaviors, and separation interfaces.

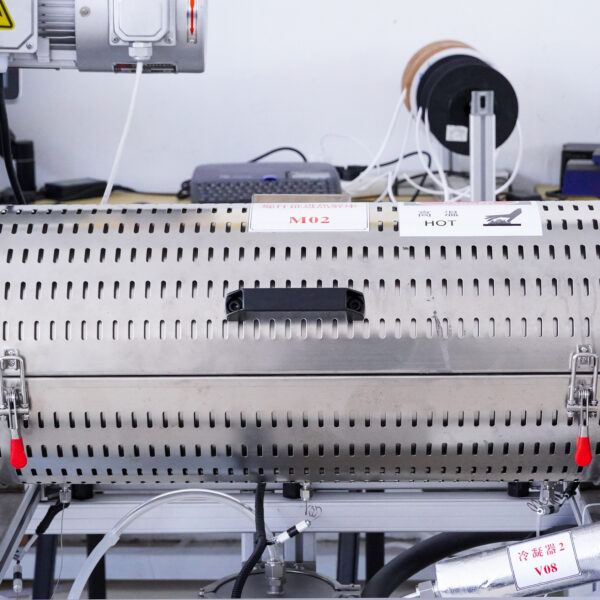

- High-Efficiency Thermal Performance: Features a ceramic fiber electric heating furnace that ensures uniform temperature distribution, rapid heat-up times, and precise thermal control during pyrolysis.
- Industrial-Standard Safety Systems: Engineered with multiple safety layers, including real-time pressure transmitters, automatic over-temperature shutdown protocols, and explosion-proof motors to maintain a secure learning environment.

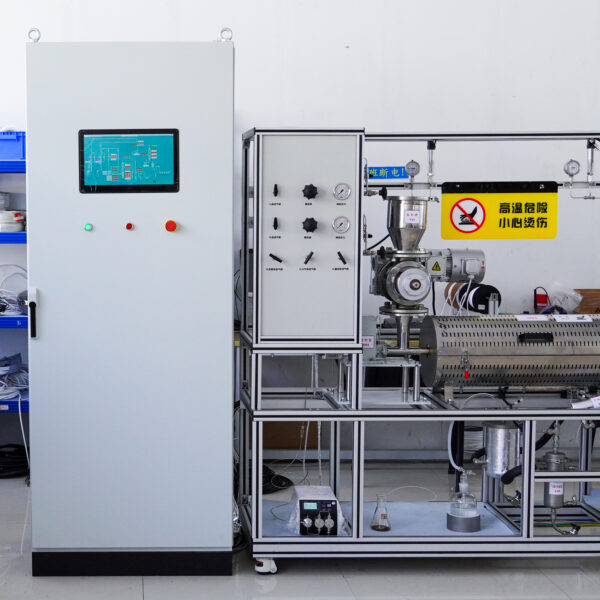

- Smart Data Acquisition: Equipped with a 15.6-inch touchscreen control panel integrated with 5G and Bluetooth connectivity, facilitating real-time parameter tracking, data logging, and cloud-based data storage for post-experiment analysis.

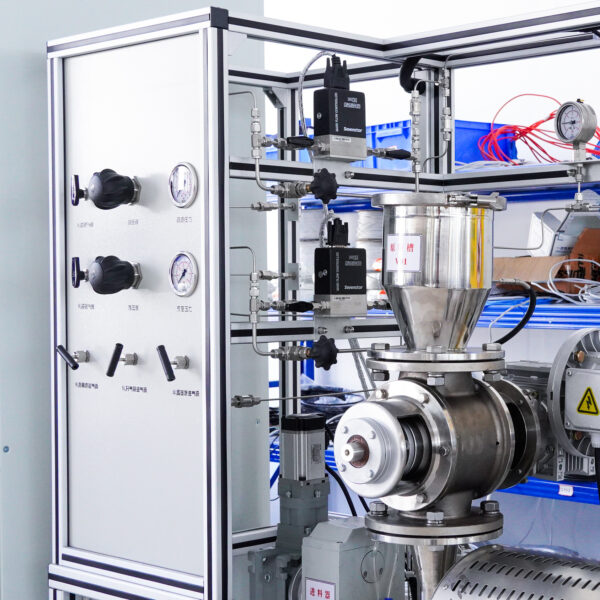

Detail & Parts
Technical Specifications
| Component / System | Technical Specifications & Material Details |
|---|---|
| Primary Structural Material | High-grade 304 and 316 stainless steel for chemical resistance and high-temperature durability |
| Pyrolysis Heating System | Ceramic fiber electric heating furnace with integrated PID temperature controllers |

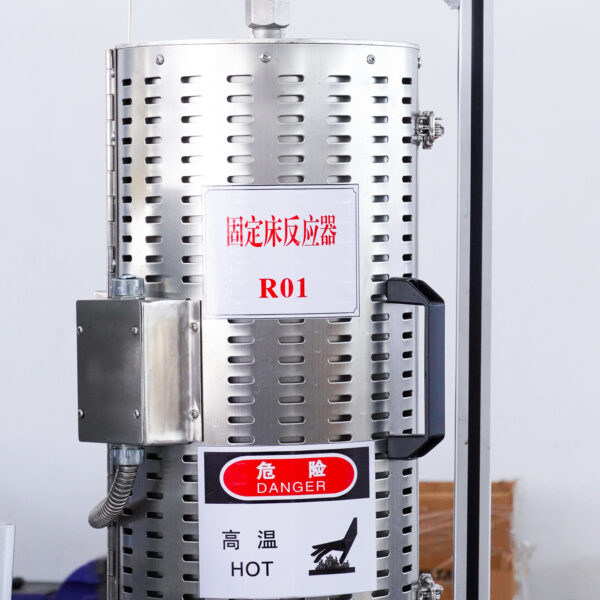

| Refining Subsystem | Distillation column, catalytic hydrogenation desulfurization, and denitrification reactors |
| Safety Mechanisms | High-temperature cut-offs, real-time pressure gauges/transmitters, explosion-proof motors |
| Control Interface | 15.6-inch industrial touchscreen with remote cloud data monitoring (5G/Bluetooth) |
| Observation Elements | Borosilicate glass gas-liquid separators and column sections for flow process visualization |
Experimental Modules and Curriculum Mapping
This pilot plant is designed to directly support core course structures in chemical, environmental, and energy engineering. The table below outlines how the plant’s operating modules correspond to classical unit operations and standard academic textbooks used in engineering curricula.
| Experimental Module | Core Unit Operation / Knowledge Point | Textbook Alignment Reference |
|---|---|---|
| Solid Waste Pyrolysis | Thermochemical conversion, solid-state kinetics, conductive heat transfer in packed beds | Transport Processes and Unit Operations Chemical Engineering Design |
| Multiphase Separation | Gas-solid separation (gravitational/inertial settling), gas-liquid separation, phase equilibrium | Unit Operations of Chemical Engineering Transport Processes and Unit Operations |
| Pyrolysis Oil Distillation | Continuous and batch distillation, vapor-liquid equilibrium (VLE), reflux ratio, column hydrodynamics | Unit Operations of Chemical Engineering Chemical Engineering Design |
| Catalytic Hydrogenation (Desulfurization & Denitrification) | Heterogeneous catalysis, chemical reaction kinetics, mass transfer in multiphase reactors | Chemical Engineering Design |
Through hands-on interaction with these modules, students gain practical insight into mass and energy balances, transport phenomena, and reactor design concepts as presented in classic engineering literature.
To ensure long-term alignment with evolving academic programs, both the software interface (including data logging features and control algorithms) and the physical hardware setup (such as reactor capacities, piping materials, and sensor selections) of this pilot plant can be customized according to your specific pedagogical goals.
