Educational Chemical Engineering Pilot Plants

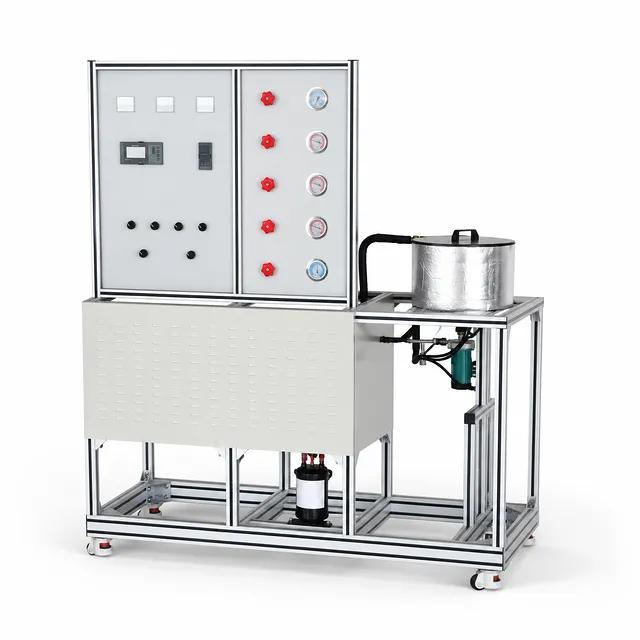

Educational Compression Refrigeration Performance Determination Unit Operations Pilot Plant
Item Number : LPK-SRDE
Price varies based on specs and customizations
- Core Components

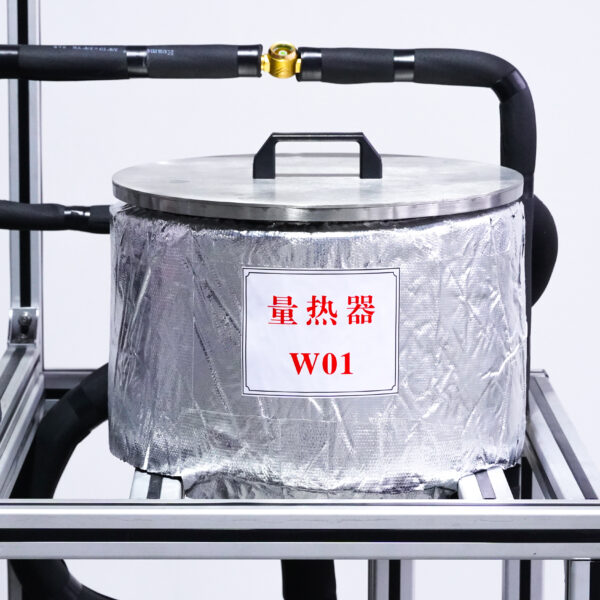

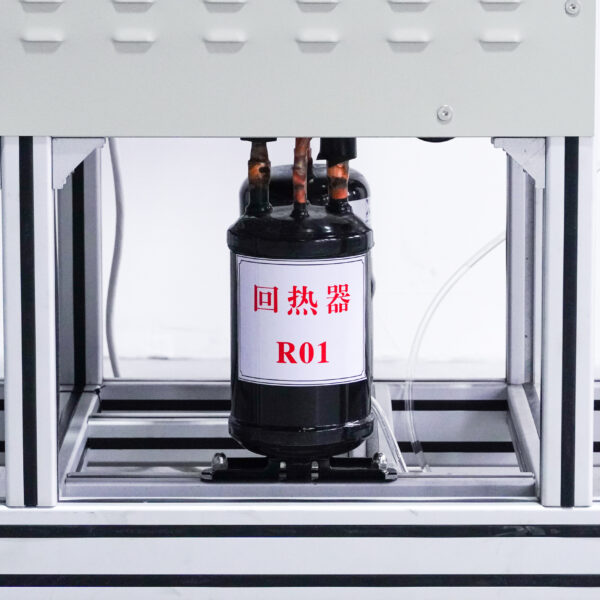

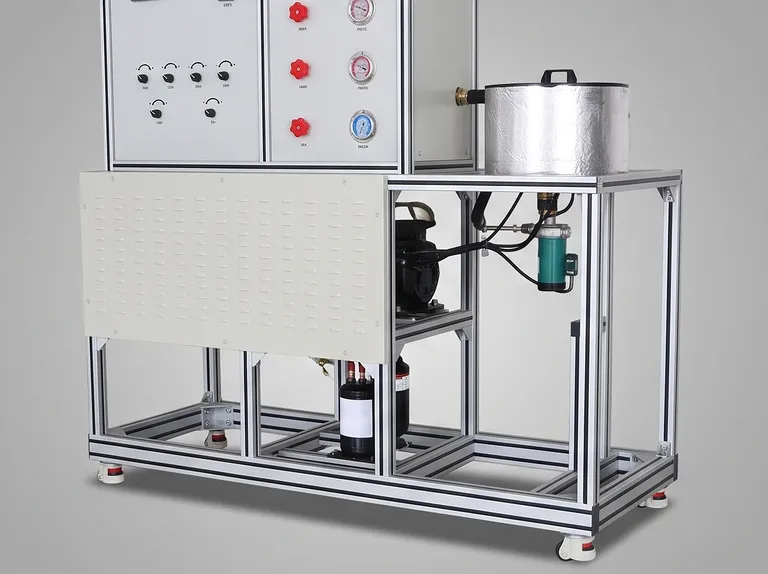

- Hermetic refrigeration compressor, water-cooled condenser, calorimeter (heater), regenerator (heat exchanger), expansion valve
- Instrumentation
- High/low-pressure gauges, electronic temperature sensors, digital power meters, flow control valves
- Working Fluid
- Environmentally compliant secondary heat transfer fluid
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Introduction
The Compression Refrigeration Performance Determination Educational Unit Operations Pilot Plant is an integrated laboratory system designed for higher education institutions to demonstrate the thermodynamic principles of vapor-compression refrigeration. It provides undergraduate students in engineering disciplines with a practical platform to analyze refrigerating cycles, evaluate energy efficiency, and understand thermodynamic processes. To meet diverse teaching and curriculum requirements, the pilot plant supports comprehensive customization across both hardware and software configurations, allowing universities to align the equipment with their specific laboratory objectives.
Key Educational Features and Advantages
- Dual Performance Coefficient Evaluation: Enables independent determination of both the compressor-specific coefficient of performance (COP) and the overall system COP, helping students distinguish between component-level efficiency and total system efficiency.
- Regenerative Cycle Comparison: Supports comparative experiments with and without heat recovery. Students can actively analyze the thermodynamic impact of regeneration on system efficiency, subcooling, and energy savings.
- Calorimeter Calibration Practice: Allows students to measure and calibrate the heat leakage coefficient of the evaporator calorimeter, introducing them to real-world engineering calibration methods and heat loss calculations.
- Thermodynamic Mapping: Facilitates the recording of system pressures and temperatures to plot cycles on pressure-enthalpy (p-h) diagrams, assisting in the visual study of normal, saturated, and supersaturated operating states.
- Safe and Environmentally Conscious Design: Utilizes non-toxic, environmentally stable secondary refrigerants to ensure a safe laboratory environment for students and instructors.

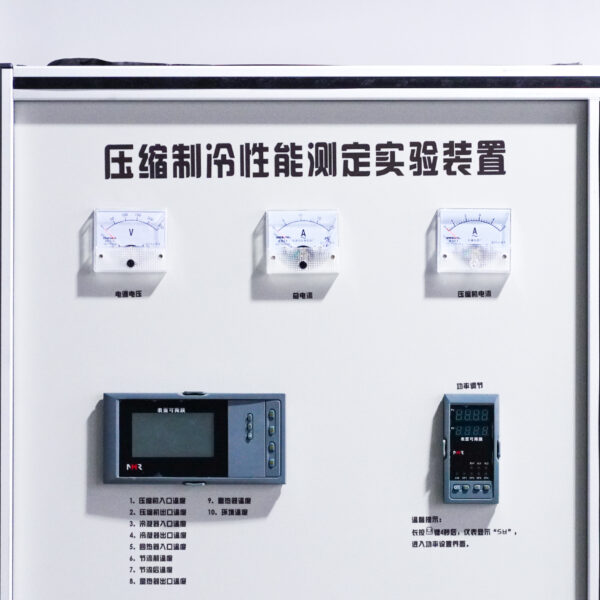

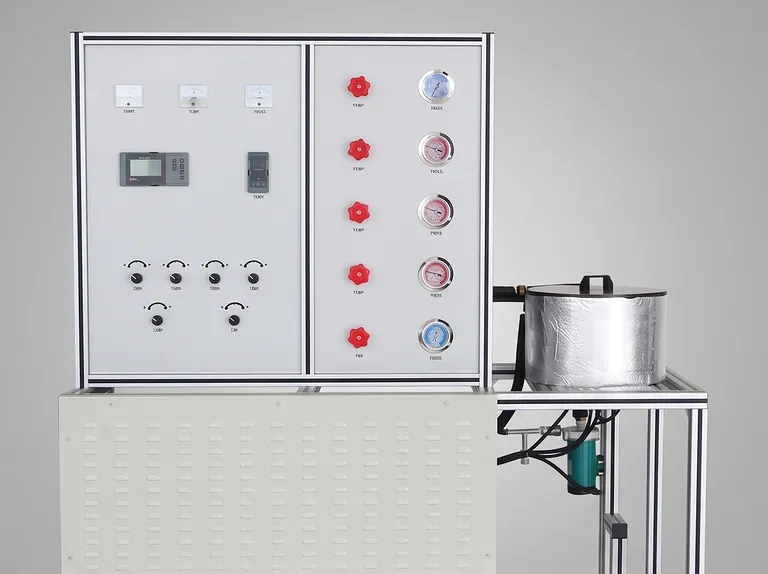

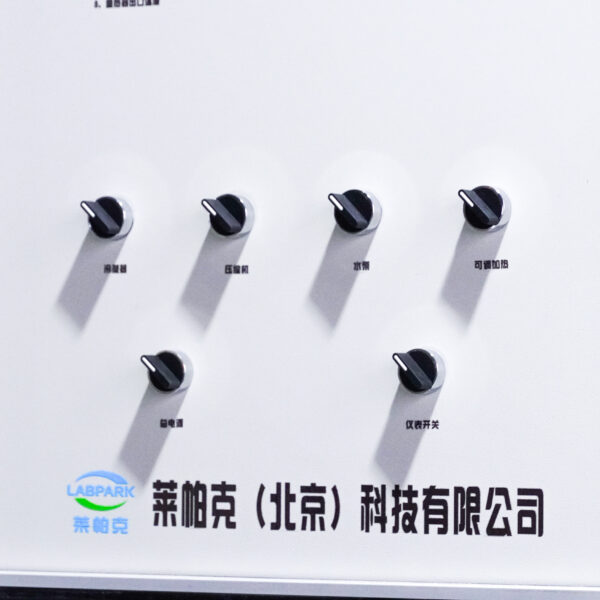

- Synchronous Monitoring: Features a centralized instrumentation panel with analog pressure gauges, digital temperature displays, and electrical meters, providing real-time data visualization during laboratory demonstrations.

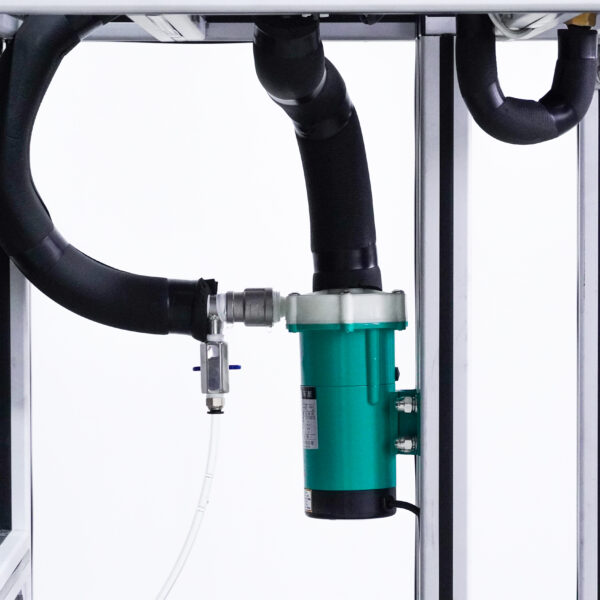

Detail & Parts
Technical Specifications
| Parameter | Specification / Details |
|---|---|
| Structure | Industrial-grade aluminum alloy frame with heavy-duty lockable casters for mobility |
| Overall Dimensions | ≤ 1480 mm × 580 mm × 1780 mm (L × W × H) |
| Core Components | Hermetic refrigeration compressor, water-cooled condenser, calorimeter (heater), regenerator (heat exchanger), expansion valve |
| Instrumentation | High/low-pressure gauges, electronic temperature sensors, digital power meters, flow control valves |
| Working Fluid | Environmentally compliant secondary heat transfer fluid |
| Safety Features | Overpressure protection, electrical leakage protection, and overload protection |
Experimental Modules and Curriculum Integration
The pilot plant is structured to align with laboratory coursework across multiple engineering fields, including chemical engineering, environmental engineering, thermal energy engineering, and food processing. The experimental modules directly correspond to core thermodynamic and heat transfer concepts found in standard academic curricula.
| Experimental Module | Learning Objectives | Academic Concepts & Textbook Reference |
|---|---|---|
| Compressor COP Determination | Calculate electrical power input and heat absorption to evaluate compressor performance. | Vapor-Compression Cycles, Work of Compression (Unit Operations of Chemical Engineering) |
| Overall Unit COP Analysis | Measure cumulative energy inputs and cooling outputs under varying load conditions. | Coefficient of Performance, Energy Balances (Transport Processes and Unit Operations) |
| Regenerative Cycle Performance | Compare system metrics when routing refrigerant through the regenerator versus direct expansion. | Heat Recovery, Refrigerant Subcooling (Chemical Engineering Design) |
| Calorimeter Calibration | Determine the thermal loss factor of the heater vessel to correct experimental COP values. | Heat Leakage, Thermal Insulation, Steady-State Heat Transfer (Unit Operations of Chemical Engineering) |
| Pressure-Enthalpy Analysis | Construct and analyze thermodynamic cycles using real-time pressure and temperature data. | Saturated and Superheated Vapor States (Transport Processes and Unit Operations) |
Customization and Adaptability
Recognizing that laboratory curriculum structures vary globally, this unit operations pilot plant offers flexible customization options. Universities can request custom software interfaces, integrating data acquisition (DAQ) systems for computerized real-time plotting and remote monitoring. On the hardware level, components, sensor types, and piping layouts can be modified to suit specific national standards or specialized research interests, ensuring seamless integration into existing laboratory spaces.
