Educational Chemical Engineering Pilot Plants

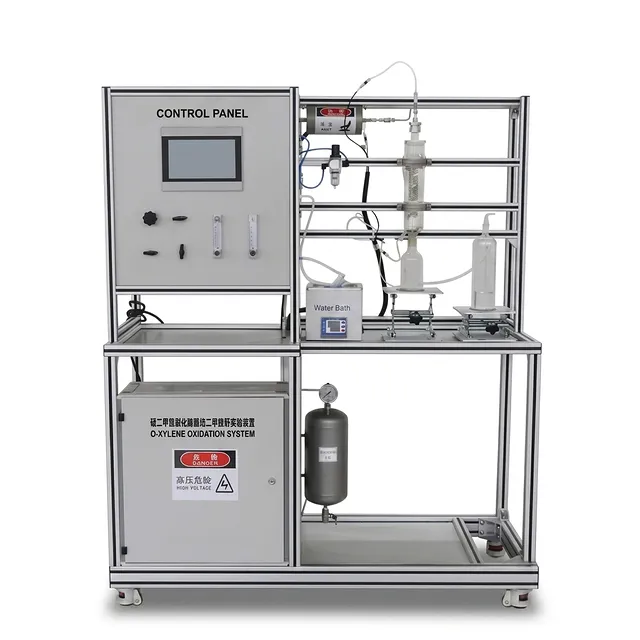

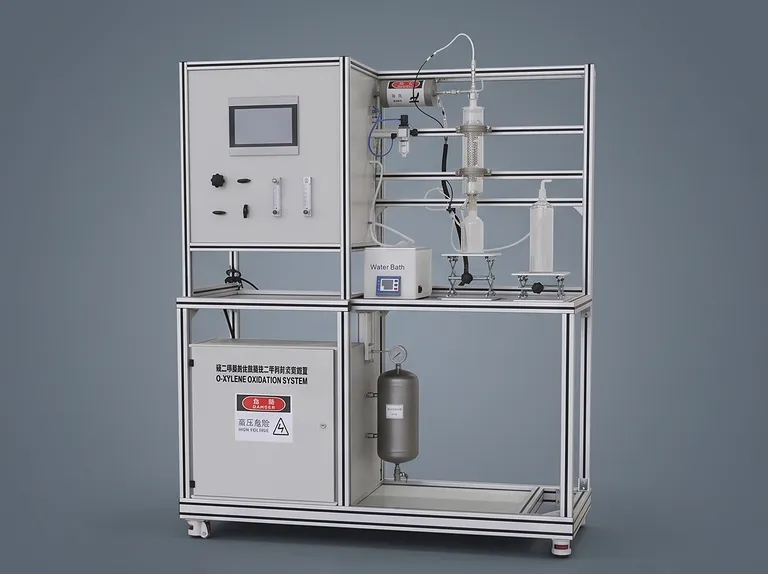

O-Xylene Oxidation to Phthalic Anhydride Educational Unit Operations Pilot Plant
Item Number : LPK-COPA
Price varies based on specs and customizations
- Reactor Type
- Fixed-bed tubular reactor
- Reactor Material
- High-temperature resistant glass (up to 500°C)
- Temperature Control
- Integrated modular program control with ±1°C accuracy
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Introduction
The o-Xylene Oxidation to Phthalic Anhydride Educational Unit Operations Pilot Plant is a specialized, bench-scale laboratory system designed for university-level engineering instruction. It provides students with hands-on experience in gas-phase catalytic oxidation within a fixed-bed tubular reactor. By simulating the industrial-scale synthesis of phthalic anhydride from o-xylene, this pilot plant helps bridge the gap between theoretical chemical reaction kinetics and practical process operations.
To ensure compatibility with diverse academic curricula and laboratory spaces, both the hardware components and the software interface of this pilot plant can be fully customized to meet specific institutional requirements.
Key Pedagogical Features and Advantages
This educational pilot plant is designed to optimize laboratory instruction while providing students with practical exposure to industrial process conditions:

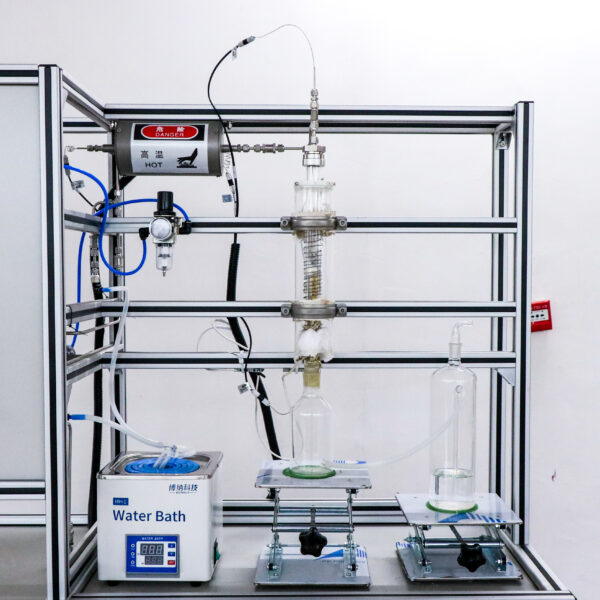

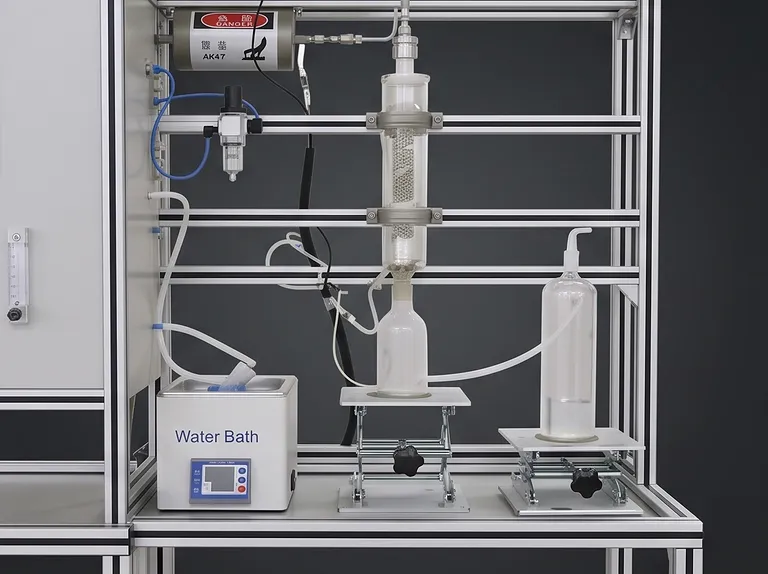

- Process Visualization: The high-temperature glass reactor allows students to visually inspect the catalyst bed, observe physical changes during the reaction, and monitor the behavior of the reactants in real time.
- Industrial Process Simulation: Demonstrates a classic, highly exothermic industrial reaction, teaching students how to manage heat transfer and temperature profiles in packed-bed reactors.
- Advanced Instrumentation: Equipped with precise sensors for temperature and pressure, alongside an integrated touch-screen control panel, facilitating quantitative data collection for kinetic analysis.
- Inherent Process Safety: Built-in safety features include automated over-temperature alarms, an integrated air filtration system, and a 5L stainless steel buffer tank to stabilize pressure fluctuations.
- Operational Mobility: Mounted on a durable aluminum alloy frame with lockable casters, allowing the unit to be easily relocated or reconfigured within the laboratory space.
Detail & Parts
Technical Specifications
| Parameter | Specification |
|---|---|
| Reactor Type | Fixed-bed tubular reactor |
| Reactor Material | High-temperature resistant glass (up to 500°C) |
| Reactor Dimensions | Inner Diameter: 20 mm |
| Operating Pressure | Atmospheric pressure |
| Temperature Control | Integrated modular program control with ±1°C accuracy |

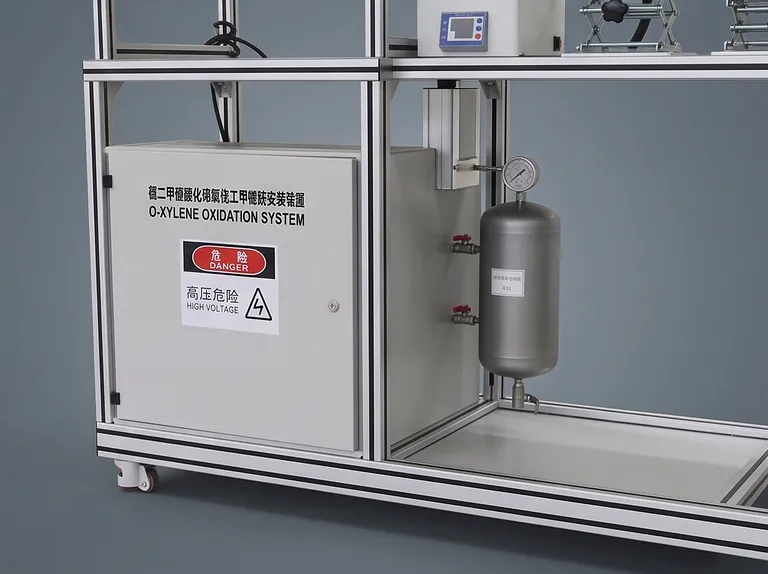

| Safety Systems | Thermocouple sensors, pressure gauges, over-temperature alarm, 5L buffer tank |

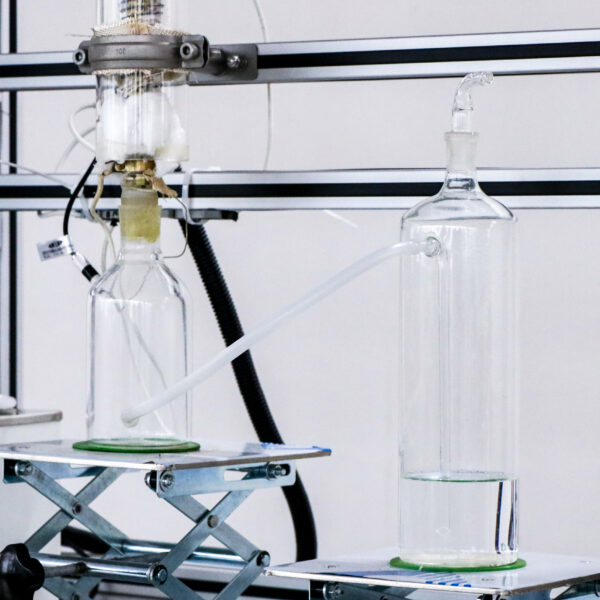

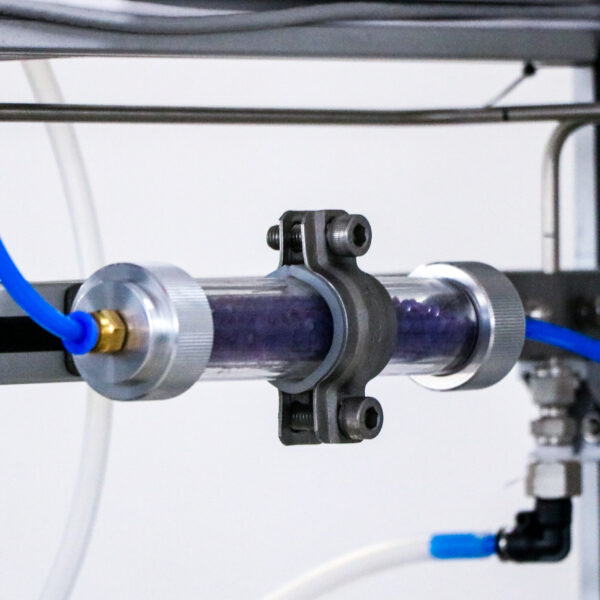

| Auxiliary Equipment | Preheater, air filtration system, product trapping device |
| Frame Material | Industrial-grade aluminum alloy |
| Dimensions | 1480 mm × 580 mm × 1800 mm |
Experimental Capabilities and Curriculum Mapping
This pilot plant is designed to align directly with core chemical and process engineering curricula. The table below details the educational modules, corresponding transport/reaction principles, and their direct links to topics in standard academic textbooks.
| Educational Module | Key Concepts & Transport Phenomena | Relevant Textbook Concepts |
|---|---|---|
| Heterogeneous Catalysis & Kinetics | Catalyst bed activation, gas-solid reaction kinetics, space velocity, conversion rate, and product selectivity. | Solid-catalyzed reactions, rate equations, and catalyst deactivation in Elements of Chemical Reaction Engineering. |
| Fixed-Bed Reactor Heat Transfer | Radial and axial temperature profiles, heat dissipation in exothermic packed beds, and prevention of thermal runaway. | Heat transfer in packed beds and heat exchangers in Unit Operations of Chemical Engineering and Transport Processes and Unit Operations. |
| Process Control & Instrumentation | Feedback loop configuration, PID temperature control, flow rate monitoring, and safety interlock systems. | Instrumentation, process control loops, and safety systems in Chemical Engineering Design. |
| Mass Transfer & Phase Separation | Gas-phase reactant distribution, product condensation, trapping efficiency, and mass balance calculations. | Gas-solid mass transfer and condensation processes in Unit Operations of Chemical Engineering. |
Customization Options
We understand that different universities have unique laboratory space constraints, utility availabilities, and syllabus requirements. To accommodate these variations:
- Hardware Customization: The physical setup—including the reactor dimensions, material selection (such as upgrading to stainless steel for high-pressure studies), sensor placements, and chemical feeding systems—can be modified.
- Software Customization: The control software can be tailored to include specific data acquisition rates, custom visualization dashboards, remote monitoring interfaces, or integration with existing university laboratory management networks.
About LABPARK
LABPARK is a dedicated developer and manufacturer of educational pilot plants and laboratory equipment, with over 20 years of experience serving the higher education sector. We focus on delivering high-quality training systems across six core academic domains: chemistry, chemical engineering, biotechnology, food engineering, pharmaceutical engineering, and environmental engineering.
Backed by a robust intellectual property portfolio of 209 technical patents, LABPARK has successfully partnered with more than 289 universities and colleges worldwide. Our state-of-the-art R&D and manufacturing base covers 49,000 square meters, ensuring that all equipment is built to rigorous engineering standards to support hands-on learning and scientific inquiry.
