Ion Exchange Water Purification Educational Pilot Plant for Engineering Unit Operations

Introduction

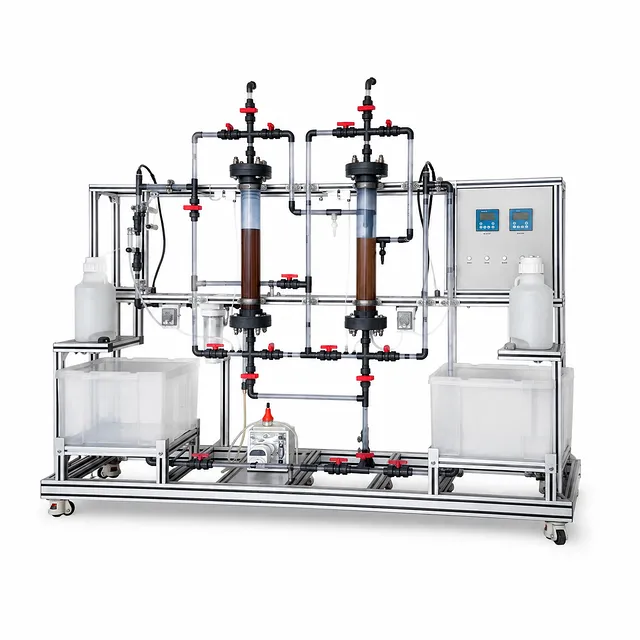

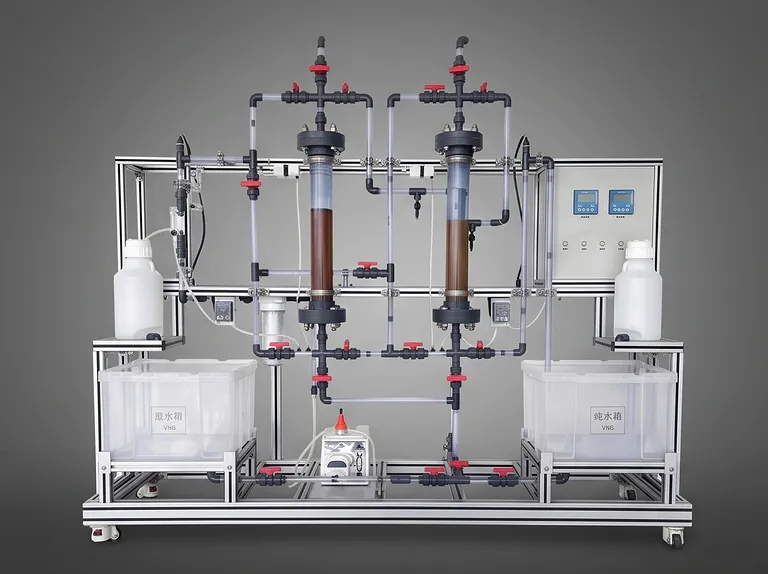

The Ion Exchange Separation and Water Purification Educational Unit Operations Pilot Plant is a bench-scale training system designed for engineering students to master the principles of ion exchange separation, resin regeneration, and process hydraulics. This pilot-scale plant replicates industrial water softening and demineralization processes using a dual-column series composite bed configuration. Built with high-visibility materials, the system allows students to visually observe column behaviors, fluid flow paths, and resin bed expansion during backwashing. It provides chemical and environmental engineering departments with a robust platform for translating theoretical mass transfer principles into practical, hands-on laboratory experiences.

Key Features & Pedagogical Advantages

• Industrial Process Simulation: The dual-column layout allows students to operate the system in various sequences, mimicking industrial configurations such as series or individual bed operations.
• Operational Sequence Mastery: Students gain direct experience in the essential stages of fixed-bed operations, including water production (exhaustion), backwashing, chemical regeneration, and forward rinsing.

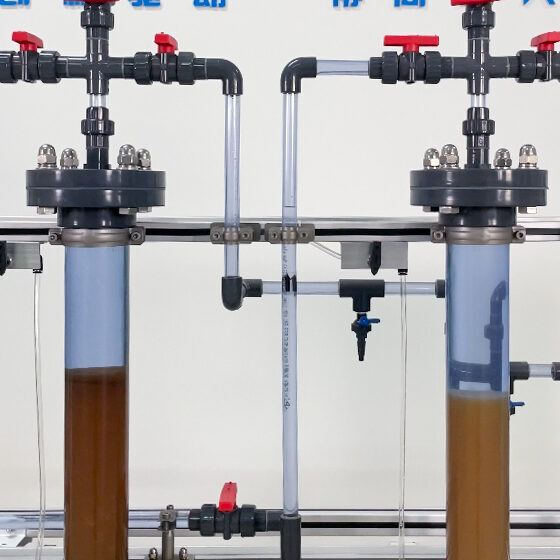

• Visual Fluid Dynamics: Transparent processing columns and clear pipelines enable real-time visualization of bed fluidization during backwashing, potential channeling, and flow patterns within the system.
• Engineering-Grade Construction: Built on a robust, corrosion-resistant anodized aluminum alloy frame equipped with swivel casters, allowing the unit to be easily relocated and secured within the laboratory.
• Comprehensive Instrumentation: Integrated sensors and flowmeters allow students to gather empirical data for plotting breakthrough curves and evaluating regeneration efficiency.

Customizable Solutions for Engineering Curriculums

To ensure this pilot plant aligns with your specific syllabus and laboratory space, LABPARK offers customizable configurations. Both the hardware components—such as column sizing, piping configurations, and sensor selections—and the software control interfaces can be tailored to meet your department's unique teaching objectives.

Detail & Parts

Technical Specifications & Experimental Modules

Academic Alignment & Curriculum Integration

This pilot plant is designed to support core laboratory coursework across several engineering disciplines, including Chemical Engineering, Environmental Engineering, Water Resources Engineering, and Food Engineering. By integrating this system into the curriculum, instructors can bridge classroom lectures with physical unit operations.

The experimental capabilities of this plant directly correspond with core concepts detailed in major engineering textbooks:

• Unit Operations of Chemical Engineering: The system serves as a physical model for studying fixed-bed separation processes, mass transfer zones, and the thermodynamics of ion exchange resins. Students can analyze the rate of ion transfer and the impact of fluid velocity on the mass transfer coefficient.
• Transport Processes and Separation Process Principles: The pilot plant provides the necessary infrastructure to generate empirical breakthrough curves, allowing students to calculate the breakthrough point, exhaustion capacity, and the overall height of the adsorption zone under varying flow rates.
• Chemical Engineering Design: Working with this unit helps students understand process flow diagrams (PFDs), piping and instrumentation diagrams (P&IDs), valve sequencing, pump selection, and the scale-up criteria required when moving from bench-scale columns to industrial water treatment plants.

Tailored Configurations for Laboratory Requirements

Understanding that different academic programs have distinct pedagogical focuses, LABPARK supports customized hardware designs and software integrations. Whether your curriculum emphasizes manual valve operation to build foundational mechanical understanding, or requires digital control loops and data acquisition systems to introduce automated process control, we can adapt the pilot plant to fit your exact training needs.
