Vocational Chemical Engineering Pilot Plants

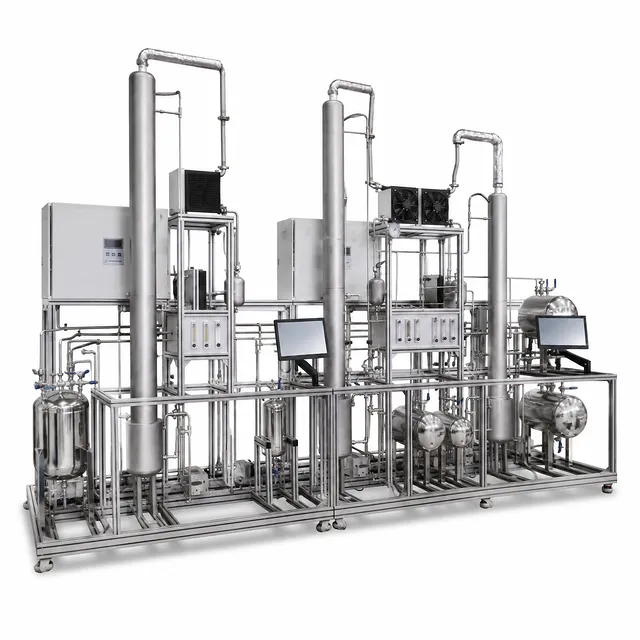

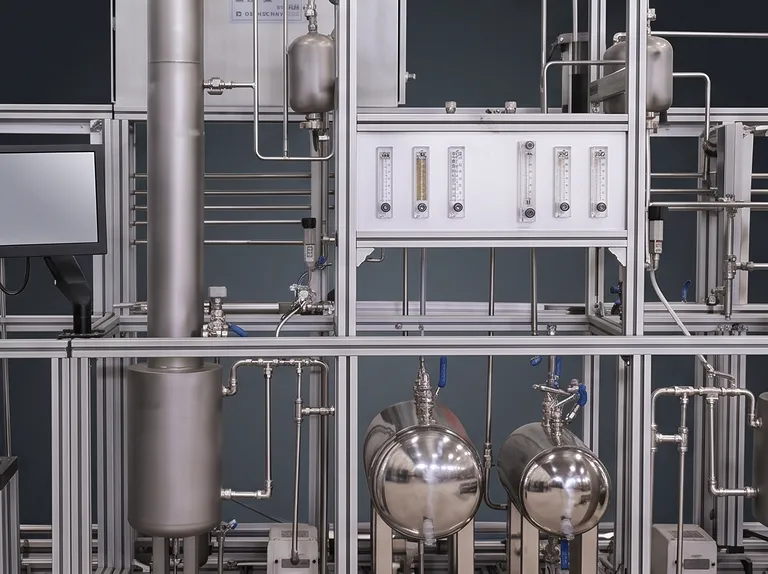

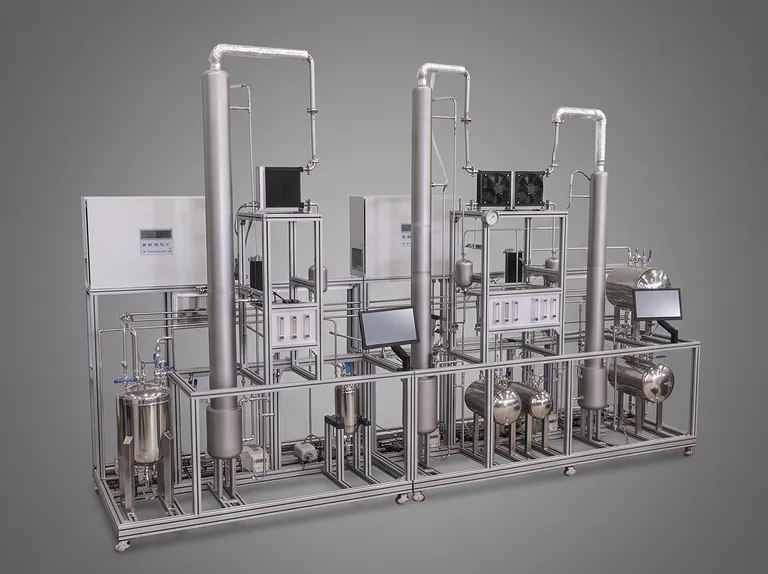

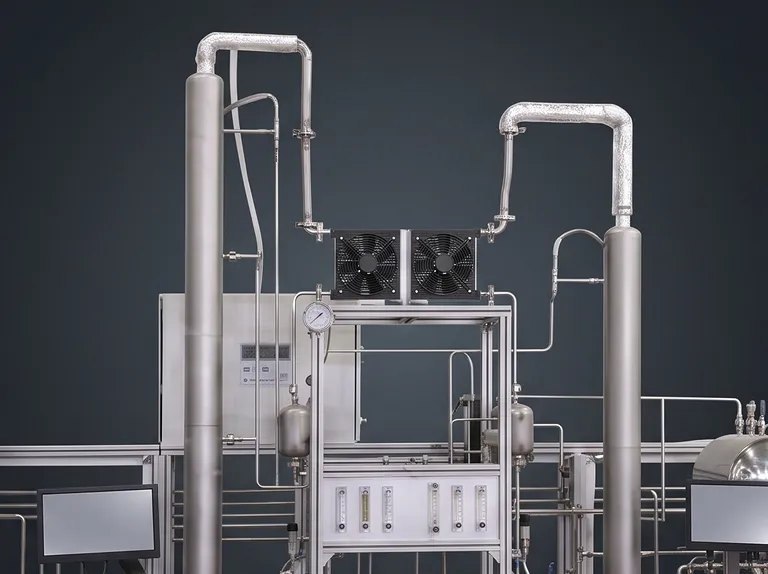

Green Anhydrous Ethanol Purification Extractive Distillation Unit Operations Training Pilot Plant
Item Number : LPK-YCJZ
Price varies based on specs and customizations
- Feed Capacity
- 5 – 20 L/h (adjustable)
- Product Purity
- Anhydrous ethanol ≥ 99.5%
- Control System
- PLC-based control with touchscreen HMI and remote PC workstation (SCADA software)
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Introduction
The Green Anhydrous Ethanol Purification and Extractive Distillation Practical Training Unit Operations Pilot Plant is a modular, pilot-scale laboratory system designed for chemical engineering and related industrial disciplines. The plant processes crude ethanol (approximately 40% concentration) using an ethylene glycol extractive distillation method to produce high-purity anhydrous ethanol. Engineered with a focus on digitalization and environmental sustainability, the system operates on a zero-emission closed-loop process where raw materials and solvents are continuously recycled. This unit provides engineering students and researchers with a realistic, hands-on environment to study complex distillation processes, process control, and green chemical engineering principles.
Customizable Solutions
To meet the specific pedagogical objectives, space constraints, and curriculum requirements of different universities, this pilot plant features a flexible design. Both the hardware configurations and the software management platforms can be fully customized, allowing institutions to tailor the system to their precise laboratory training needs.
Key Teaching Functions and Advantages
- Realistic Engineering Layout: Helps students understand industrial plant zoning concepts, including the arrangement of utility areas, process areas, and main pipe racks, bridging the gap between classroom theory and plant design.
- Modular Process Operations: Organized into distinct modular sections—specifically crude ethanol purification and extractive distillation—reinforcing the concept of industrial unit operations and process sequencing.
- Closed-Loop Green Technology: Built with a materials-recycling design that achieves zero emissions during normal operation, fostering environmental awareness and sustainable engineering practices.
- Advanced Process Control & Instrumentation: Integrates industry-standard sensors and instruments (temperature, pressure, flow rate, liquid level, and agitation speed). Students gain practical experience in sensor calibration, operation, and troubleshooting.
- Dual Control Architecture: Supports both manual local control and automated remote monitoring through a distributed control configuration, allowing students to practice PLC configuration, process visualization, and real-time alarm management.
- Safety and Collaborative Operations: Promotes teamwork through co-operative control room and field operation scenarios, cultivating industrial safety awareness and standard operating procedures (SOPs).
Curriculum Integration and Textbook Alignment
The practical training unit is designed to complement core university curricula in Chemical Engineering, Environmental Engineering, and Food Engineering. The table below outlines how the plant’s operational modules correspond to key concepts found in classic engineering textbooks.
| Training Module | Key Unit Operations & Engineering Tasks | Textbook Alignment & Core Concepts |
|---|---|---|
| Crude Distillation Unit | Continuous fractional distillation, reflux ratio optimization, mass and energy balances. | Unit Operations of Chemical Engineering - Fractional distillation principles - Reflux ratio and McCabe-Thiele method - Plate and column efficiencies |
| Extractive Distillation Unit | Separation of azeotropic mixtures, solvent (entrainer) selection, adjustment of solvent-to-feed ratios, and feed tray location. | Transport Processes and Unit Operations - Vapor-liquid equilibrium (VLE) deviation - Azeotropic and extractive distillation systems - Multi-component mass transfer |
| Heat Exchange & Utility Systems | Evaluation of different condenser and reboiler configurations, heat transfer coefficient determination. | Unit Operations of Chemical Engineering / Transport Processes and Unit Operations - Shell-and-tube heat exchangers - Condensation and boiling heat transfer |
| Process Control & Instrumentation | Calibration and wiring of sensors; PID loop tuning for temperature, flow, level, and pressure. | Chemical Engineering Design / Process Control Curricula - Piping and Instrumentation Diagrams (P&ID) - Loop control strategies and safety interlocks |
| Plant Design & Sustainability | Plant zoning (utility, process, and piping layouts), material recycling, and environmental impact assessment. | Chemical Engineering Design - Equipment layout and piping design - Green engineering and waste minimization - Process safety and hazard analysis |
Technical Specifications
The standard configuration of the pilot plant is designed for academic laboratories, balancing industrial realism with classroom safety.
| Parameter | Specification |
|---|---|
| Feed Capacity | 5 – 20 L/h (adjustable) |
| Product Purity | Anhydrous ethanol ≥ 99.5% |
| Columns Included | Crude distillation column, extractive distillation column, solvent recovery column |
| Material of Construction | SUS304 / SUS316L Stainless Steel and Borosilicate Glass (for key visualization areas) |
| Instrumentation | Digital temperature transmitters, turbine flowmeters, differential pressure sensors, electronic level transmitters |
| Control System | PLC-based control with touchscreen HMI and remote PC workstation (SCADA software) |
| Safety Features | Overpressure relief valves, emergency stop buttons, high-temperature cutoff, electrical overload protection |
Tailored Software and Hardware Integration
To ensure that the equipment integrates seamlessly into your existing academic programs, we offer comprehensive customization support. Both the hardware (such as column heights, piping configurations, vessel capacities, and metallurgy) and the software (including control interfaces, data logging features, and simulated fault injection modules) can be modified to align with your specific teaching methodology and laboratory space.
About LABPARK
LABPARK has been dedicated to serving the higher education sector for over 20 years, focusing on providing reliable, high-quality laboratory teaching equipment and pilot plants. Our expertise spans six major domains: chemistry, chemical engineering, biotechnology, food science, pharmaceutical engineering, and environmental engineering.
Driven by continuous technological improvement, LABPARK holds 209 technical patents and has established successful partnerships with more than 289 universities and colleges worldwide. Our operations are supported by a state-of-the-art 49,000 square meter production and research base, ensuring that every piece of equipment we build meets rigorous safety and educational standards.
